Engine Control Module

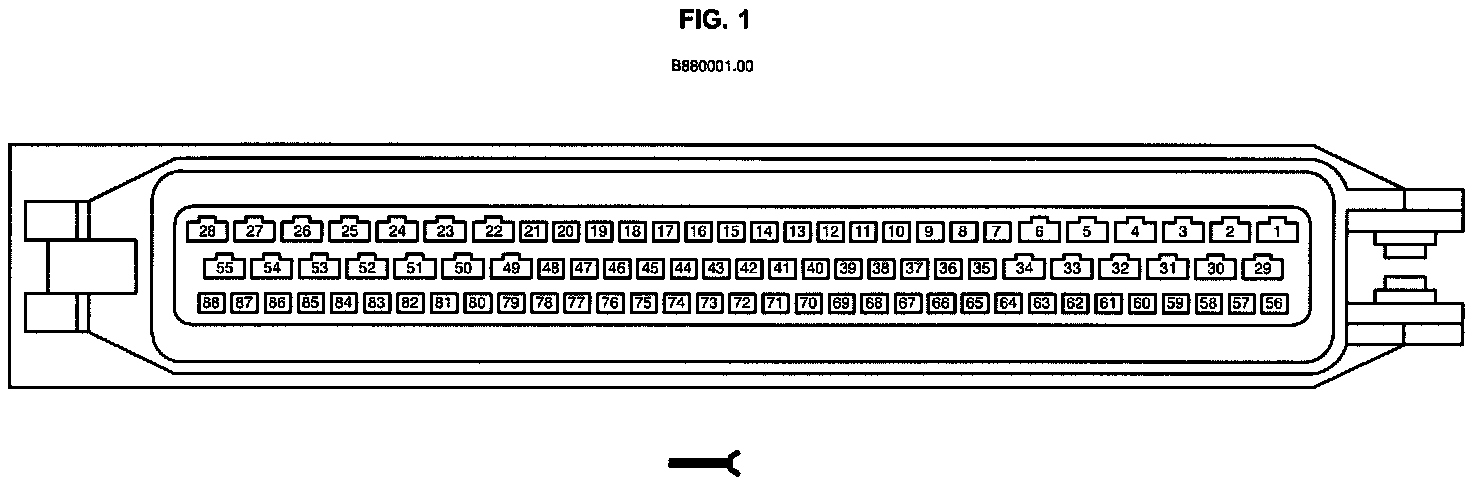

Connector View:

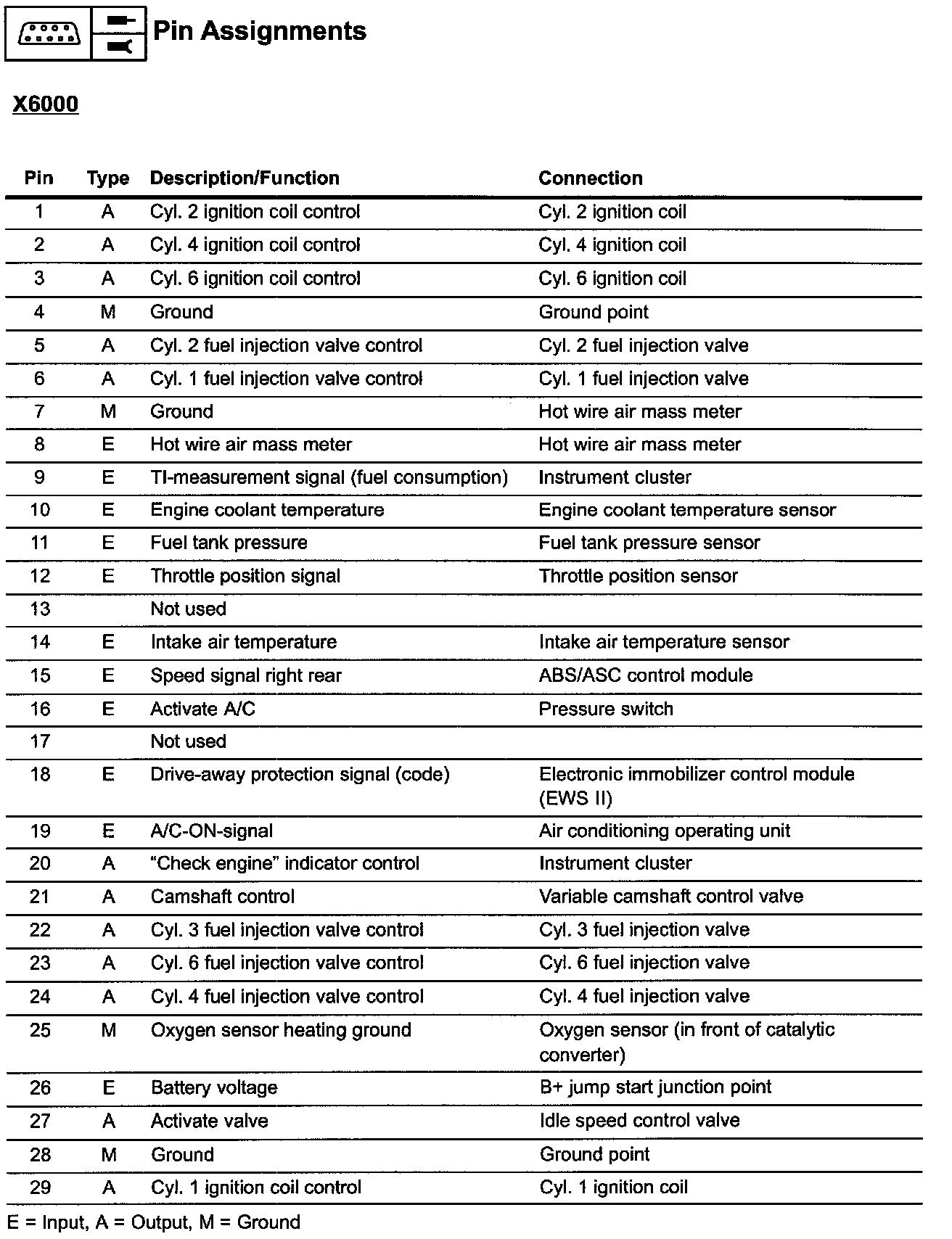

Pin Assignments 1-29:

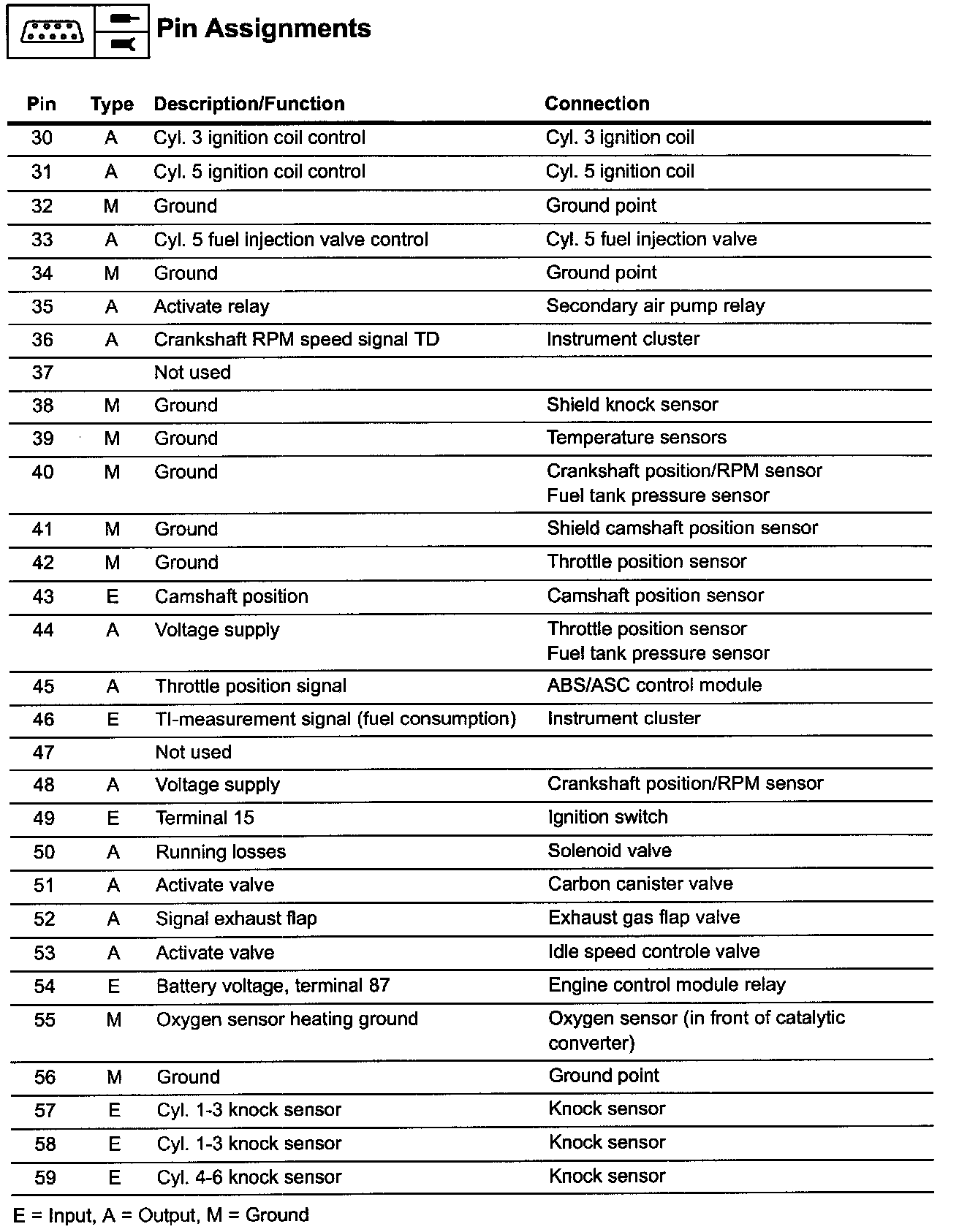

Pin Assignments 30-59:

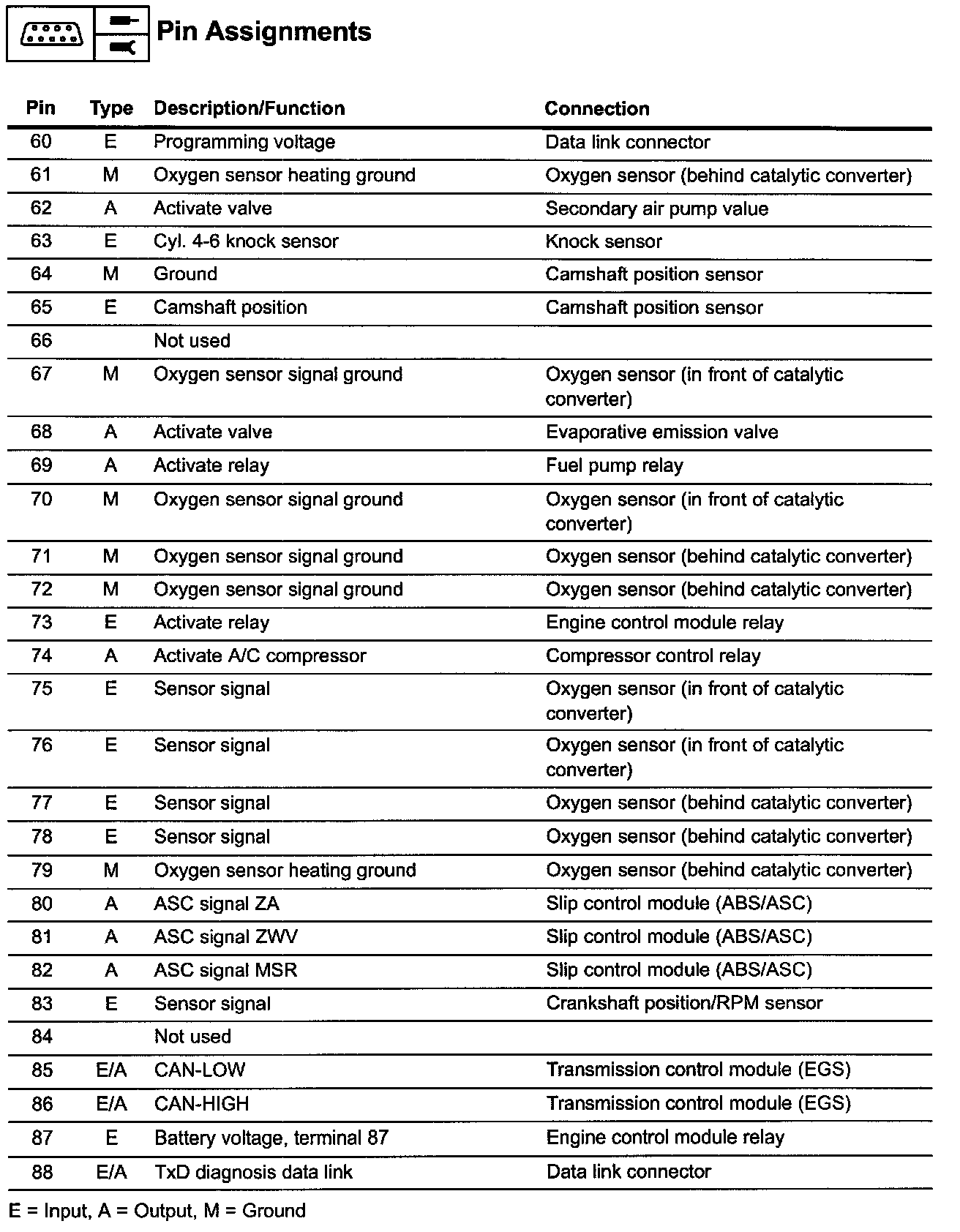

Pin Assignments 60-88:
