Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Window Motor >> Passenger's

Passenger's

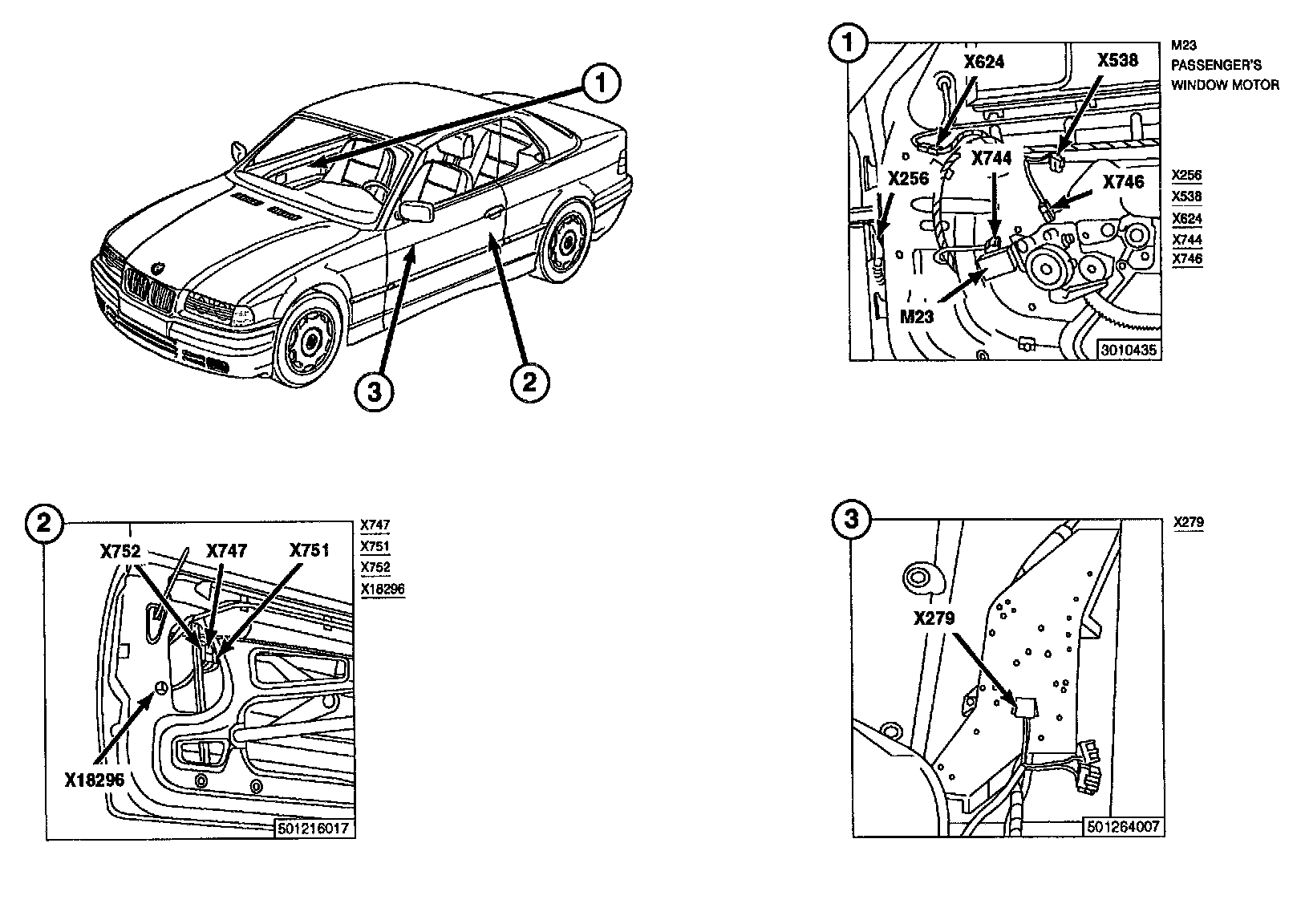

Component Location View
Figure 1
Component ID M23, Passenger's Window Motor
Location RH Front Door Behind Door Panel
