Distance Sensor

NOTE: Switch off ignition.

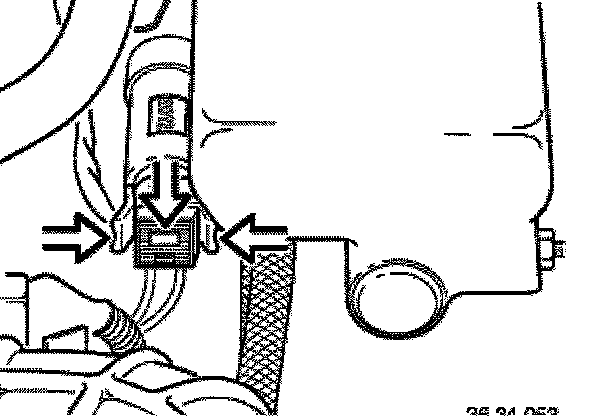

- Pull of cable connector from distance sensor.

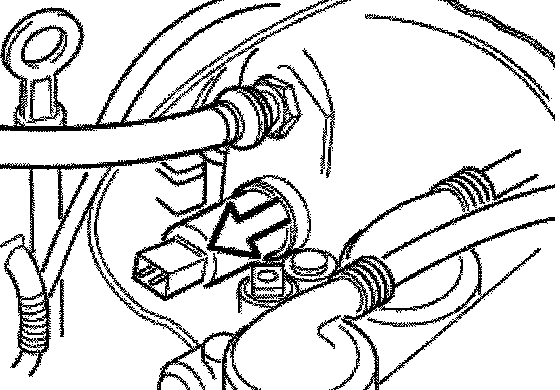

- Lift snap ring out using a screwdriver.





- Pull distance sensor out of guide.





CAUTION: Vacuum booster housing has a color code.

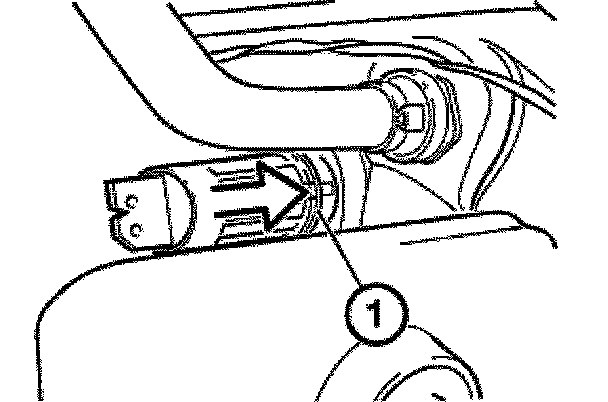

- Slide a spacer cap (1) of same color on plunger.

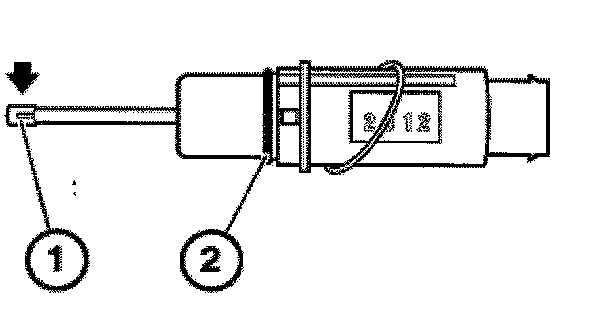

- Slide on new O-ring (2) as far as sealing edge on distance sensor.

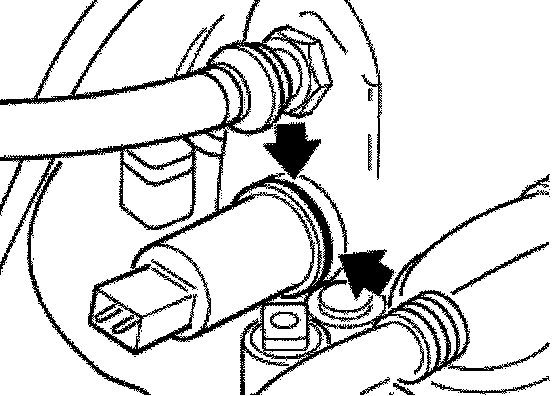

- Mount new snap ring (1) in groove of sensor holder in brake booster.
- Slide in new distance sensor until snap ring is heard and seen to engage.
- Connect cable connector.
