Brake Booster

NOTE: After conclusion of work, bleed brakes. Service and Repair

- Remove brake master cylinder, refer to Replacement. Service and Repair
- Remove ABS hydraulic control unit. Service and Repair





- Pull off distance-sensor connector
- Pull vacuum hose off brake booster.





- Remove paneling for instrument panel at bottom left.
- Remove retainer/pin on swivel joint of operating rod.
- Installation:
Adjust brake-light switch.

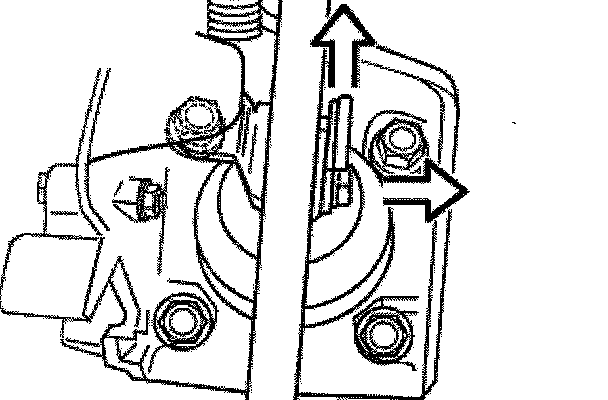

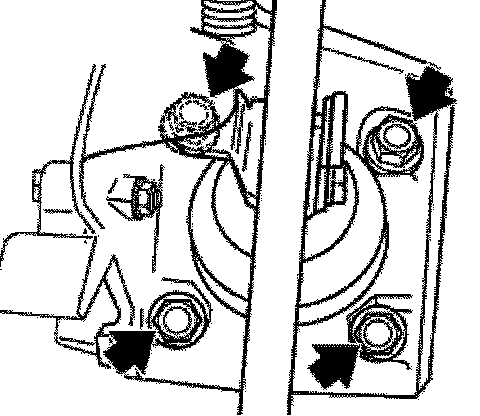

- Unscrew nuts and remove brake booster
- Installation:
Replace lock nuts.
For tightening torque, refer to Tightening. Specifications
