Master Cylinder

- Installation:
After completing work, bleed brake system. Service and Repair
Remove expansion tank, refer to Replacement. Fluid Reservoir (Expansion Tank)

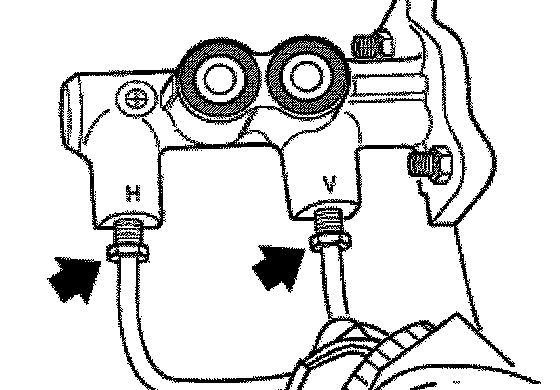

- Unscrew brake pipes on brake master cylinder (tandem) and immediately plug tapped bores and pipes with suitable plugs.
- Installation:
Tightening torque, refer to Tightening. Specifications





- Unscrew lock nuts and pull brake master cylinder (tandem) out of brake booster.
- Installation:
Use new retaining nuts.
Tightening torque, refer to Tightening. Specifications





- Use new seal between brake master cylinder (tandem) and brake booster.

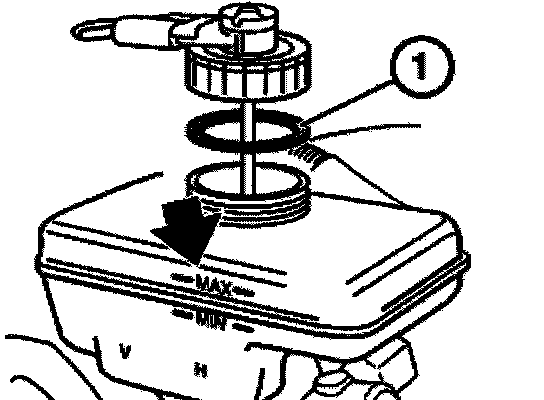

- Correct brake-fluid level.
- Check seal (1).
