Fluid Reservoir (Expansion Tank)

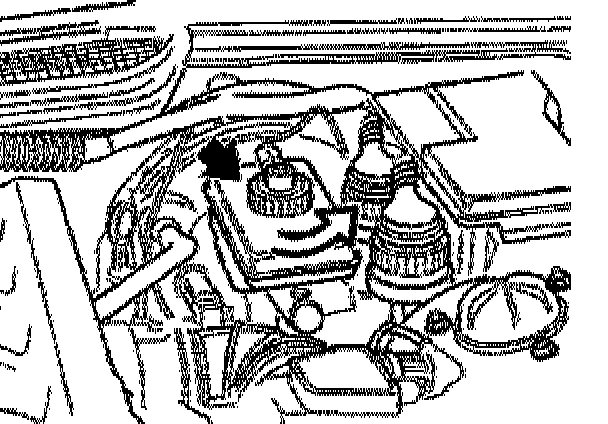

- Draw brake fluid out of the expansion tank with a suction bottle, which may only come into contact with brake fluid.
Do not reuse drawn out brake fluid.

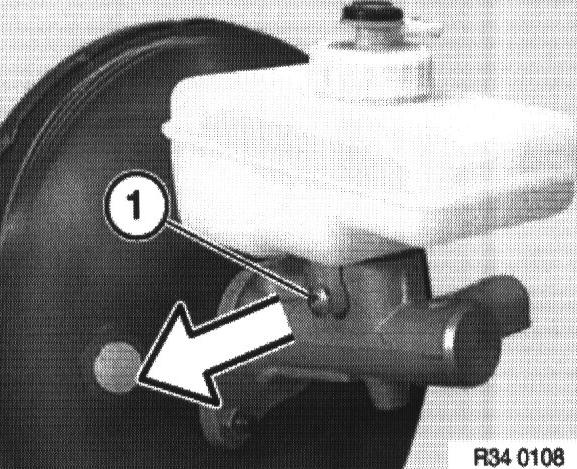

- Loosen mounting bolt (1) and pull out completely.
- Installation:
Tightening torque, refer to Tightening. Specifications

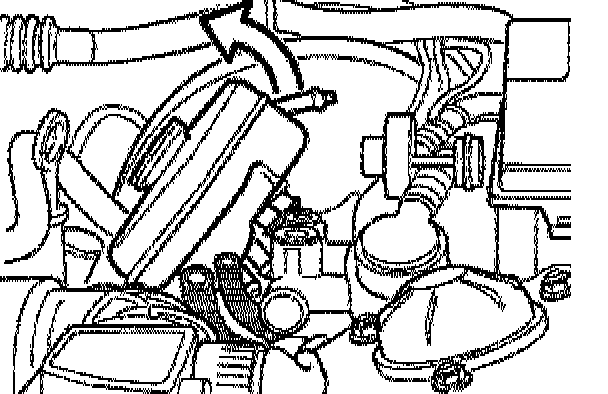

- Disconnect expansion tank from brake master cylinder (tandem) by tilting to side.

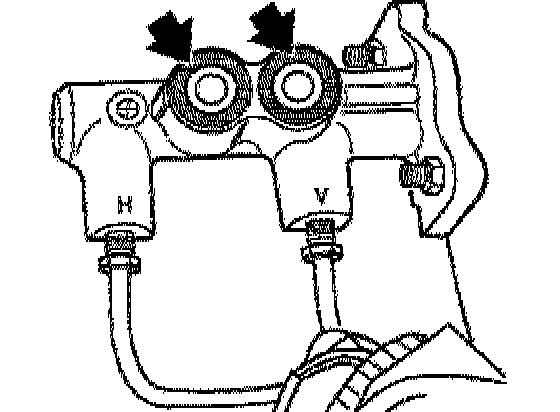

- Plug connections on brake master cylinder for protection against dust and dirt.





- Coat sealing rings only with brake fluid.
Do not use ATE brake-cylinder paste.

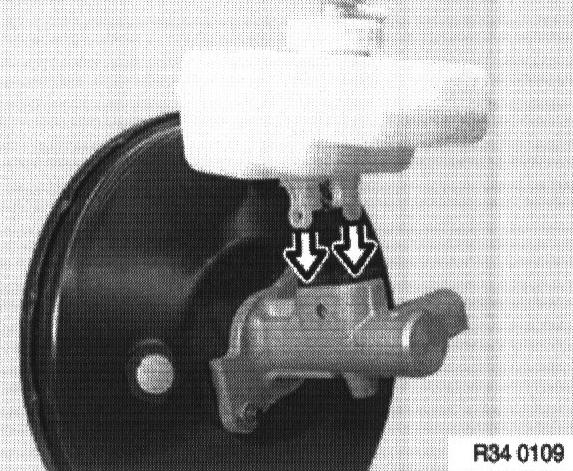

- Press tank into plugs with connectors as far as stop so that they are precisely perpendicular.





- Fill expansion tank with new brake fluid until level reaches MAX mark.
If necessary, bleed brakes. Service and Repair
Correct fluid level.
Watch seal (1).
