Replacing Brake Lines

NOTE: Brake pipes are only supplied straight, in correct length and fitted with connecting nipples.

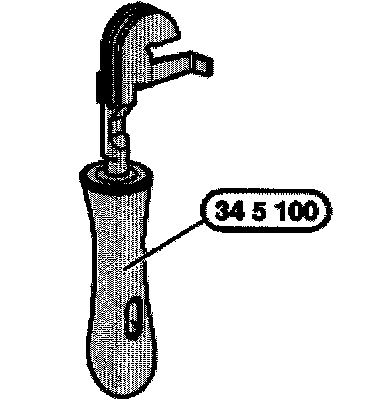

- New brake pipes must be bent as required using special tool 34 5 100.
- Removed brake pipes can be used as templates for bending.

CAUTION:
- Protective coat on brake pipes must not be damaged while bending.
- Brake pipes must not be bent back and forth.
- Tighten brake-pipe couplings with torque wrench.
Tightening torque, refer to Tightening. Specifications

CAUTION: After completion of work, bleed brake system. Service and Repair
