Rear

NOTE:
- Remove and install rear wheels.
- Bleed brakes. Service and Repair





- Apply pedal prop and depress brake pedal slightly.
This prevents brake fluid from escaping from expansion tan after brake pipes have been disconnected (which would enable air to enter the braking system).

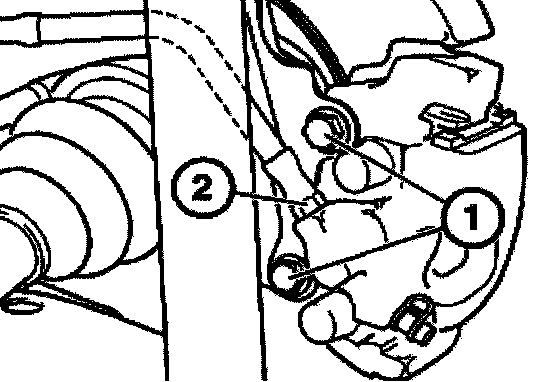

- Loosen screws (1). Disconnect brake hose (2).
- Right side:
Disconnect plug connection for brake lining sensor.
- Pull off fist caliper towards rear of vehicle.
- Installation:
Tightening torque, refer to Tightening. Specifications

CAUTION:
- Check routing and securing of brake-pad-wear indicator cable.
- Check for correct securing with tab of dust cap.
- Rubbing of cable on rim must be prevented.
