Front

NOTE:
- Remove wheels.
- After completion of work, bleed brake system. Service and Repair






- Apply pedal prop and depress brake pedal slightly.
This prevents brake fluid from escaping from expansion tank after brake pipes have been disconnected (which would enable air to enter braking system).
- Disconnect brake pipe from connection with brake hose.
- Left: Remove connector for wear indicator.
- Installation:
Tighten brake hose on brake caliper.
Set steering to straight-ahead setting.
Screw brake hose onto brake line, ensuring that brake hose is not twisted at this point.
Tightening torque, refer to Tightening. Specifications

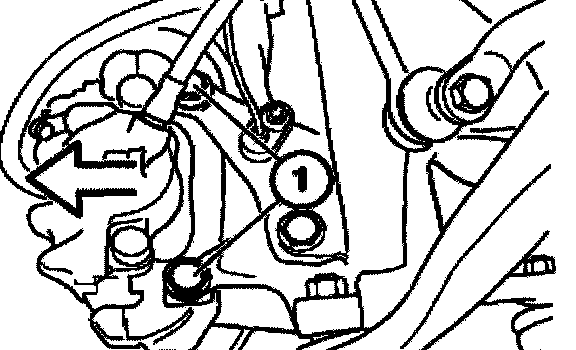

- Unscrew bolts (1) and remove brake caliper.
- Installation:
Tightening torque, refer to Tightening. Specifications
