Brake Pedal

Brake Pedal

NOTE:
- Remove and install panelling for instrument panel.
- Remove brake-light switch.





- Disconnect return spring for brake pedal.
- Take off locking clip for shaft pin of brake pedal.
- Push out shaft pin.
- Installation:
Lubricate sliding surfaces with grease.

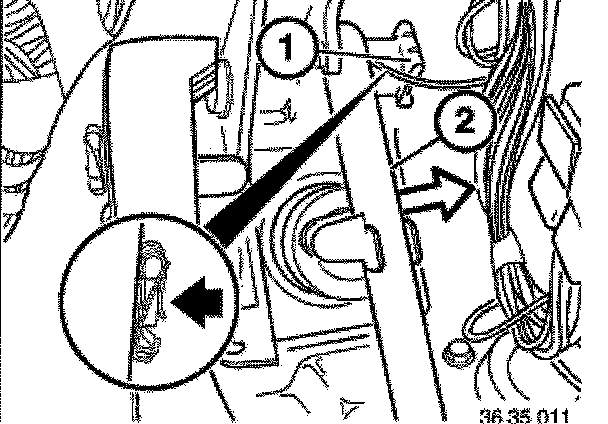

- Take off locking clip (1) for brake pedal.
- Pull off brake pedal (2).





- Installation:

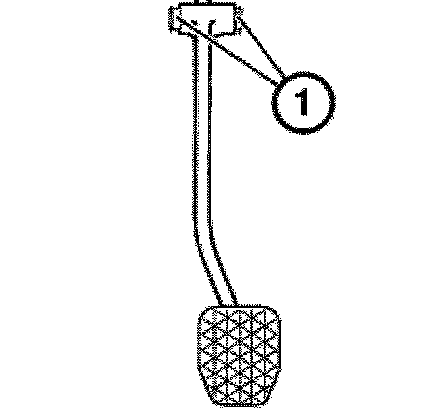

Check bearing sleeves (1), replacing if necessary.
Lubricate sliding surfaces with grease.
