Pin Assignments
Pin Assignments

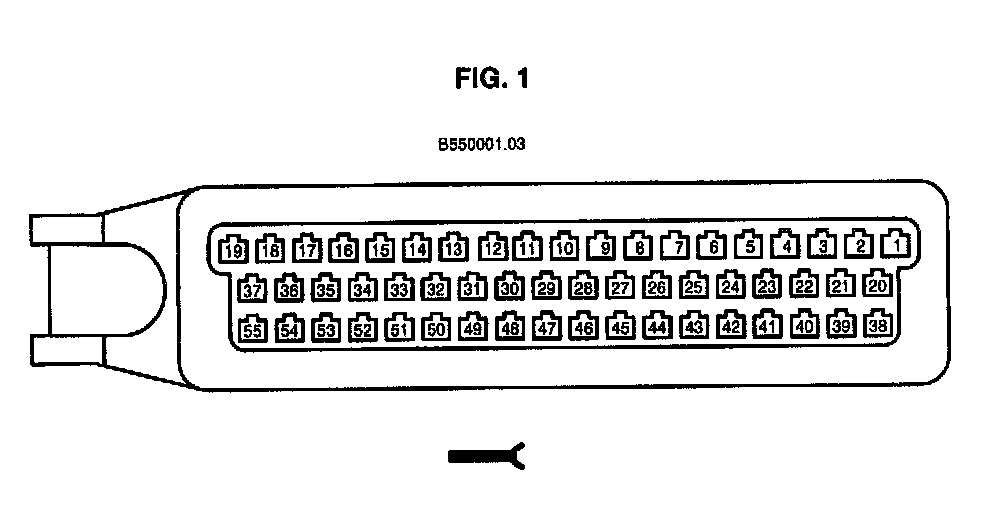

X1171:
Connector (55 Pins, Black)

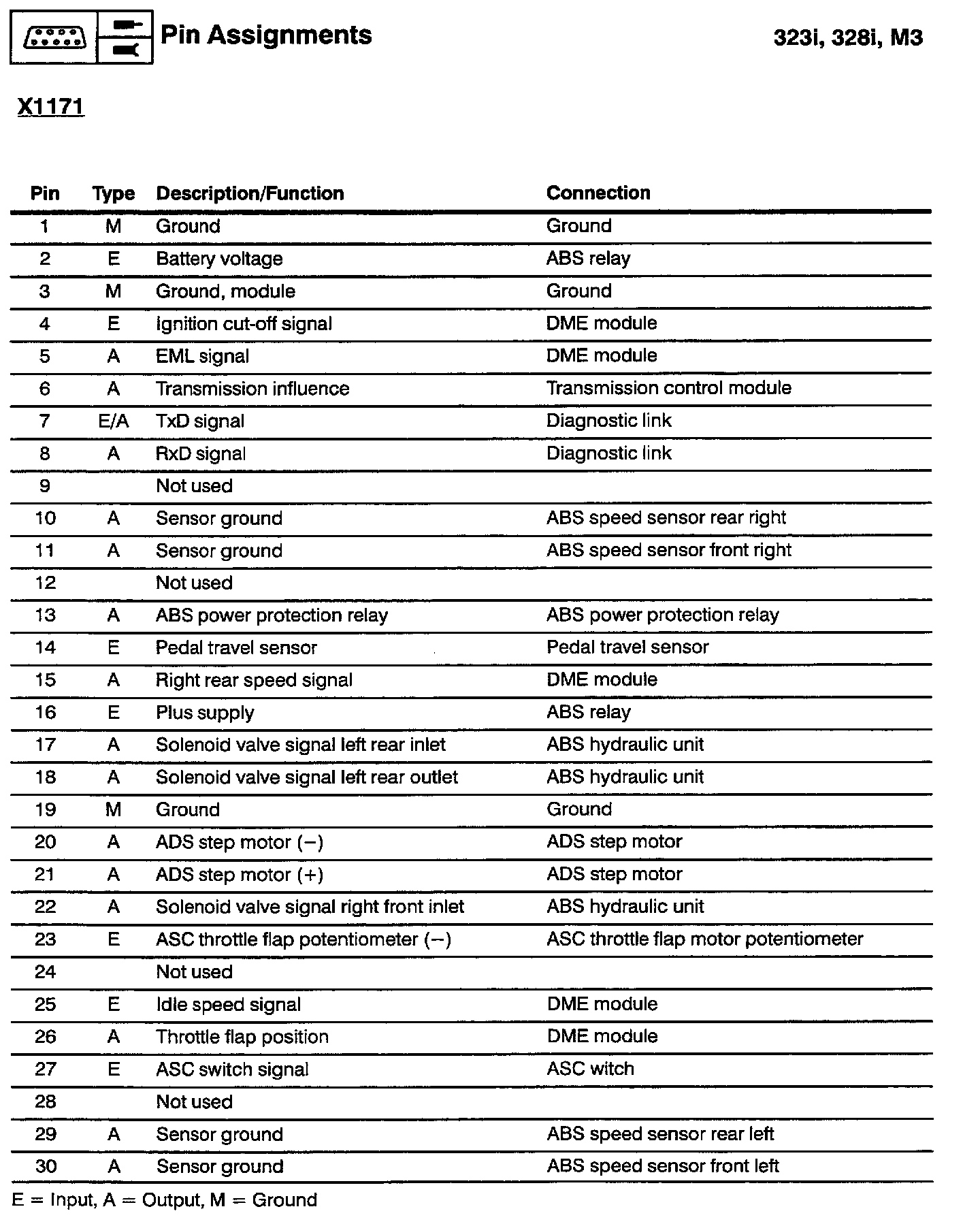

Slip Control Module (ABS/ASC): Pin Assignments (Part 1 Of 2):

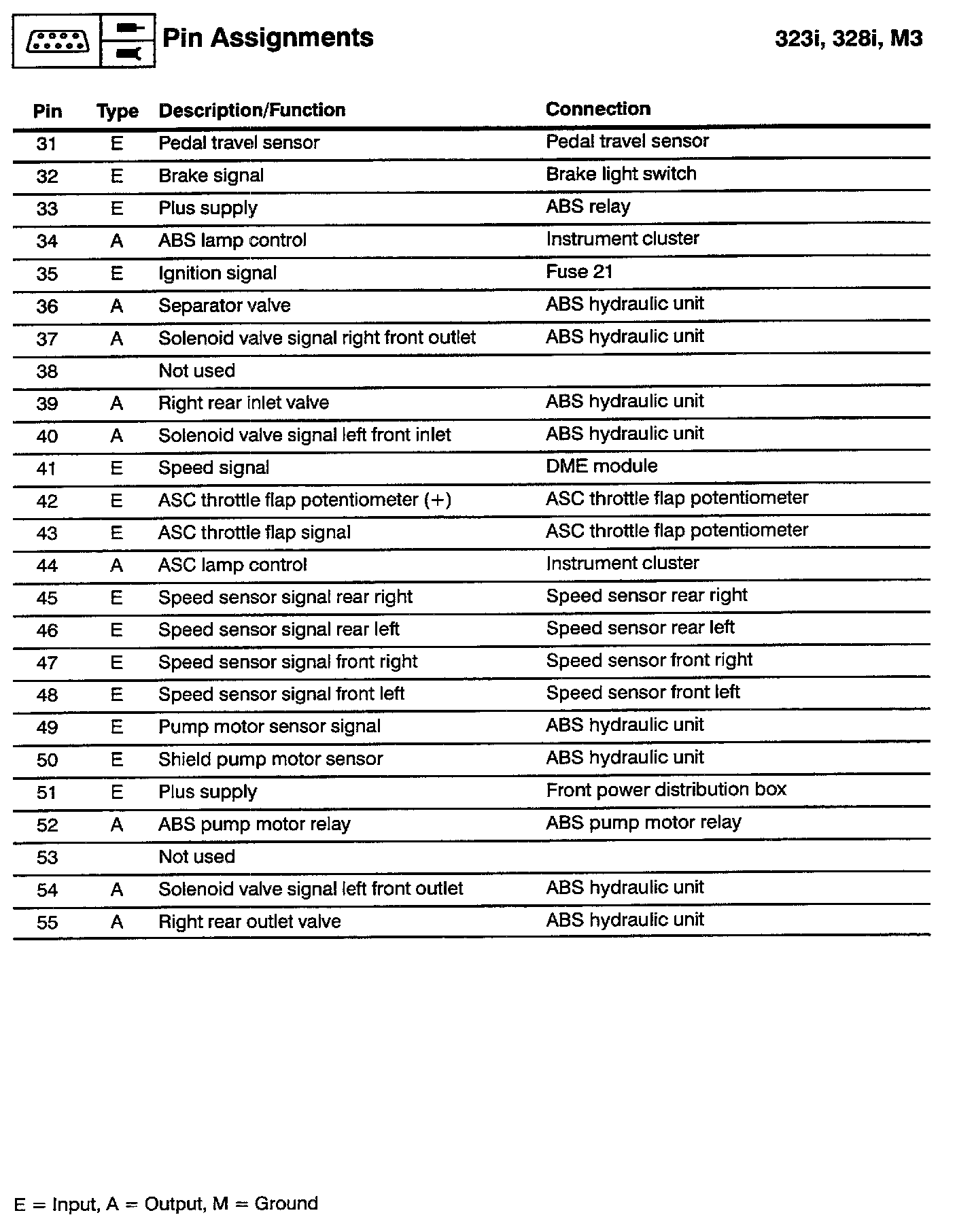

Slip Control Module (ABS/ASC): Pin Assignments (Part 2 Of 2):
