Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Slip Control (ABS/ASC) >> Block Diagram

Block Diagram

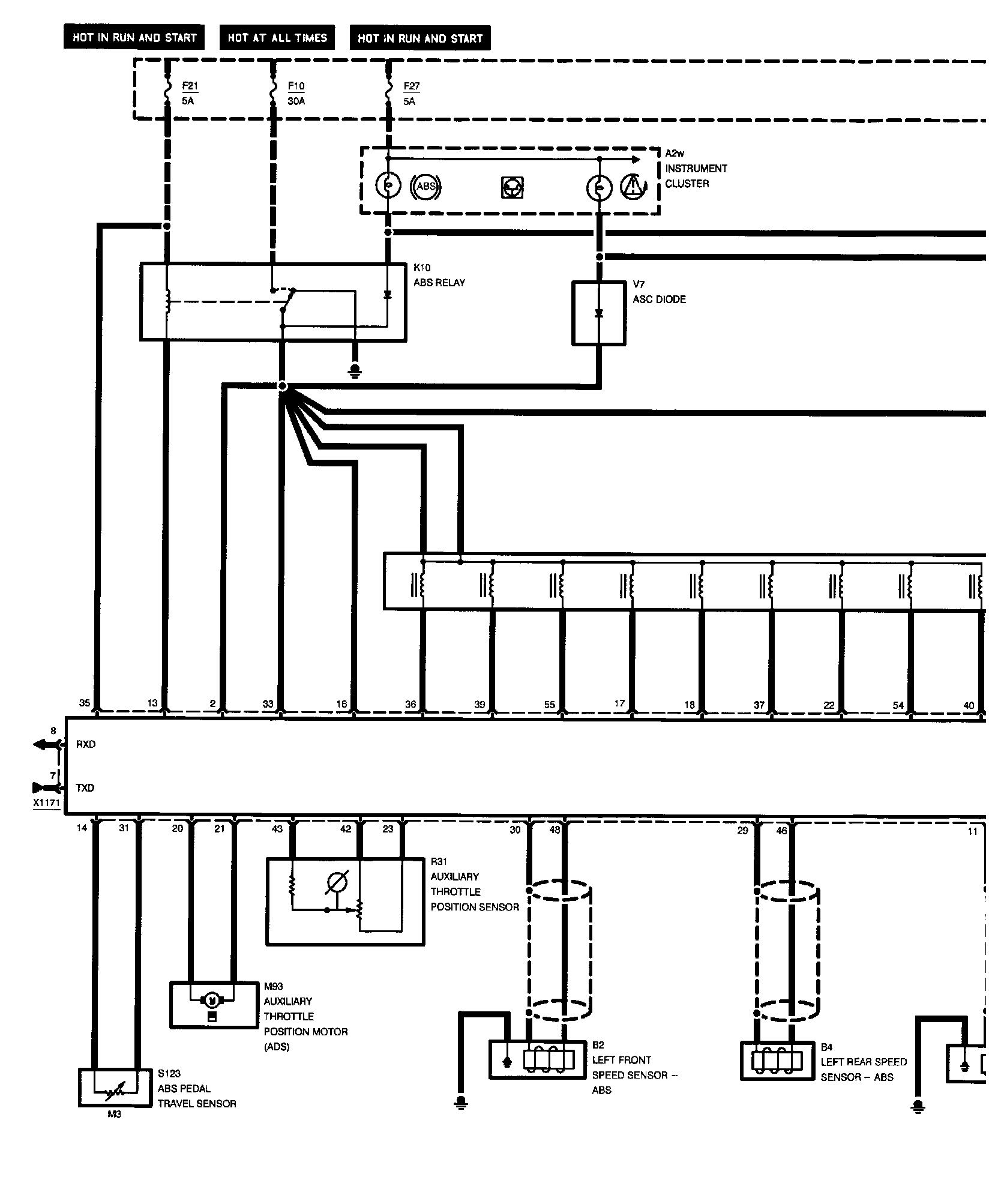

�a�,�~�,Slip Control Module (ABS/ASC): Block Diagram:
