Replacing Cushion Heating Element For Front Seat

Replacing cushion heating element for left or right front seat


Remove seat cushion,

Remove seat cover,








Installation:
Heating mat is secured together with the cover on the padding.


CAUTION!
Do not damage the heating elements in heating mat.







Installation:
Lock new retainers by bending with special tool 52 0 050.

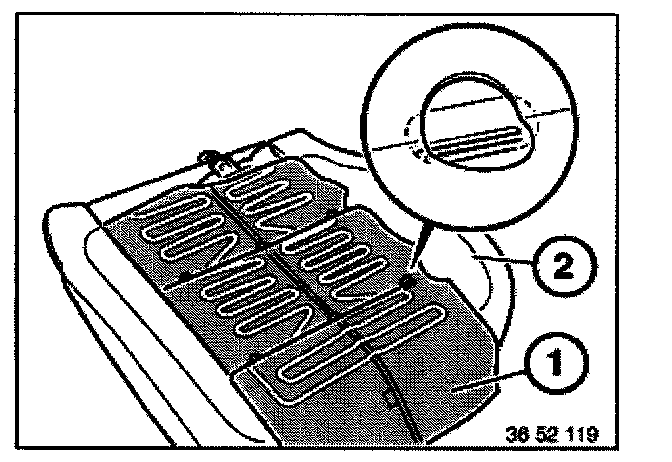

(1) Padding
(2) Retainer
(3) Securing rod in padding
(4) Securing rod in cover
(5) Heating mat
(6) Cover

Guide wires for cushion heating through seat cushion shell.







Installation:
Attach adapter cables 61 2 071 and 61 2 072 to black plug and connect to a 12 V power source.

Check function.
