Replacing Mounting Clips For Front Seat Cushion Padding

Replacing mounting clips for front seat, cushion padding
Run seat up as far as possible.

Run seat up as far as possible.

CAUTION!
Deactivating belt-lock tightener:

Manual Seats:

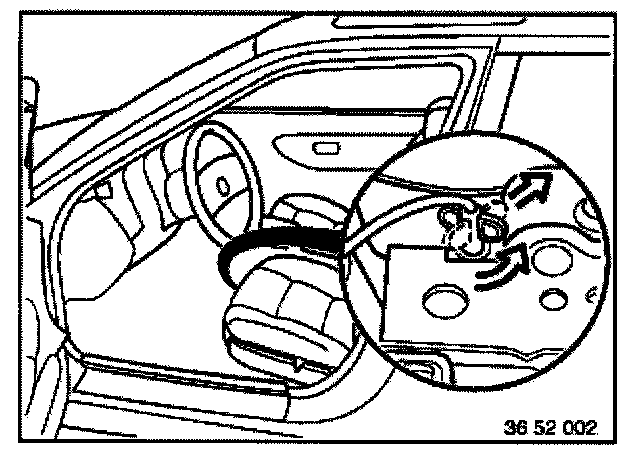

Turn toggle 90 ° and detach cable upwards.

Installation note:
Attach cable carefully.

Check for correct seating of cable.
Seat belt lock tensioner will not work if seating is incorrect!

Power Seats:

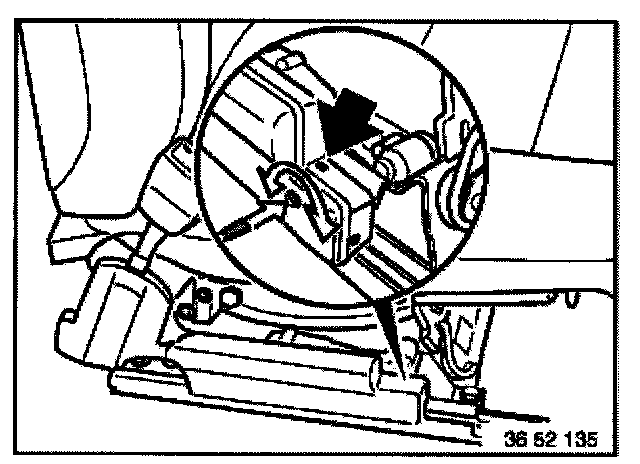

Turn slotted head screw until green mark in sight glass changes to red.

Installation note:
Turn mark to green.

Seat belt lock tensioner will not work if at red mark!

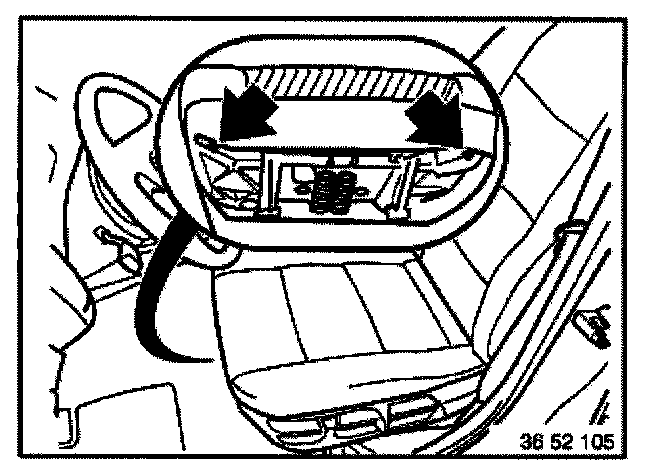

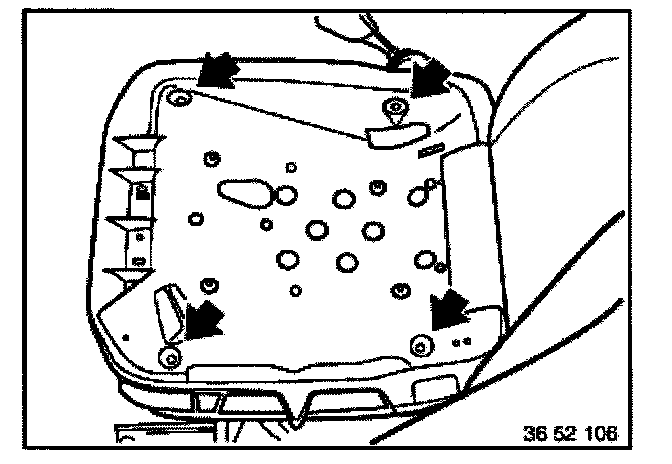

Cut off clips using snipers.

Sport Seats:

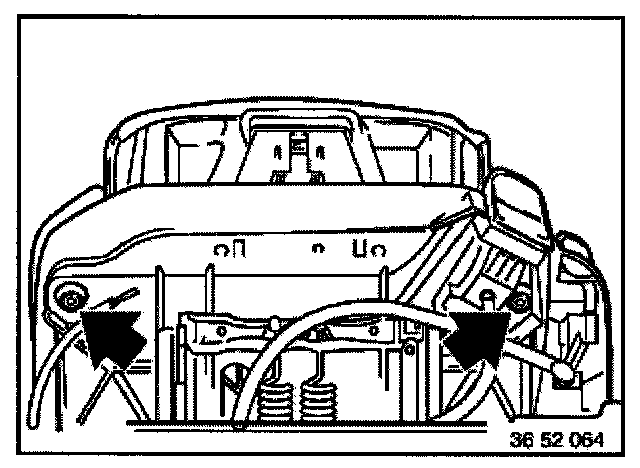

Remove screws at front.

Adjust backrest back as far as possible.

NOTE: If seat is heated, be careful not to damage electric wires.

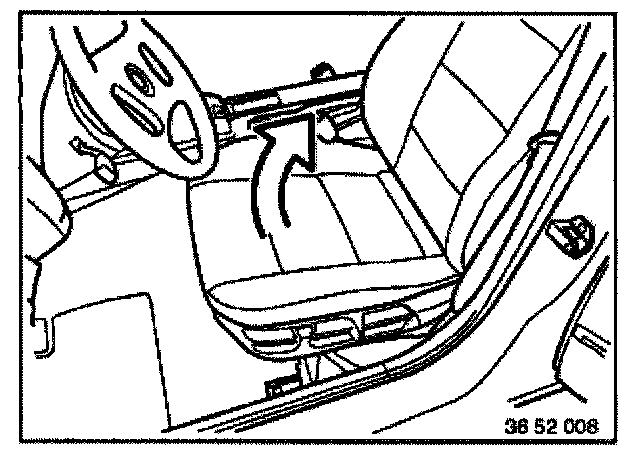

Unclip entrance-end clip carefully together with cushion padding straight upwards.

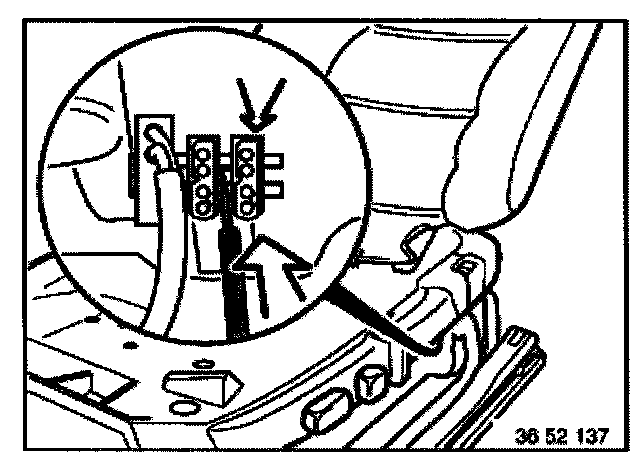

Seat Heating:
Disconnect plug.
Unlock and pull off seat heating plug receptacle.

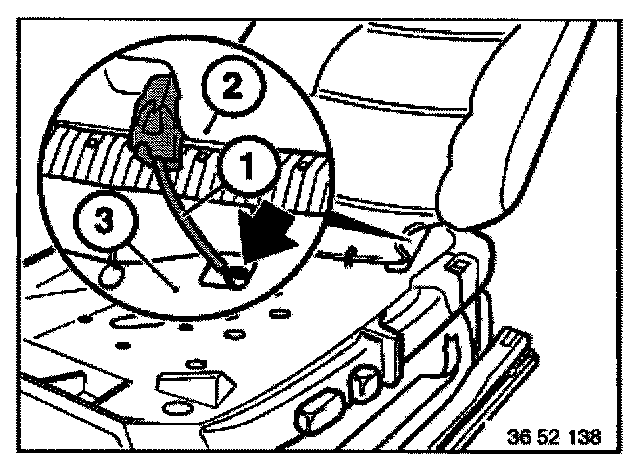

Guide plug (1) through seat cushion shell (2) and remove cushion padding (3).

Sports Seat:

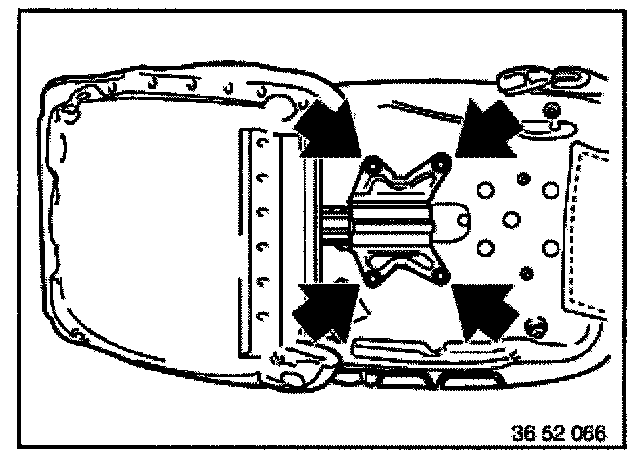

Remove screws and remove cushion padding together with thigh support.

Installation note:
Remove clip remainders.

Installation note:

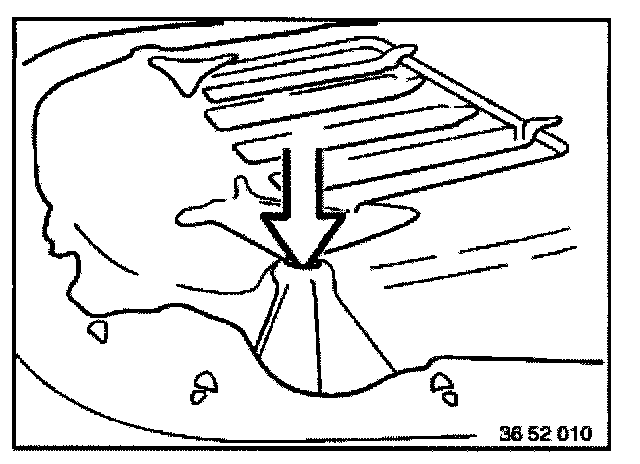

Pinch off clip heads in cushion padding using cutting pliers (head of cutting pliers ground flat).

Installation note:
Insert rest of clip through holder into foam rubber.

Installation note:
Insert new clips and clip cushion padding on seat cushion shell.
