Replacing Cushion Shell on Front Seat (Manual)

Removing and installing or replacing cushion shell on left or right front seat (manual)







Remove seat cushion,

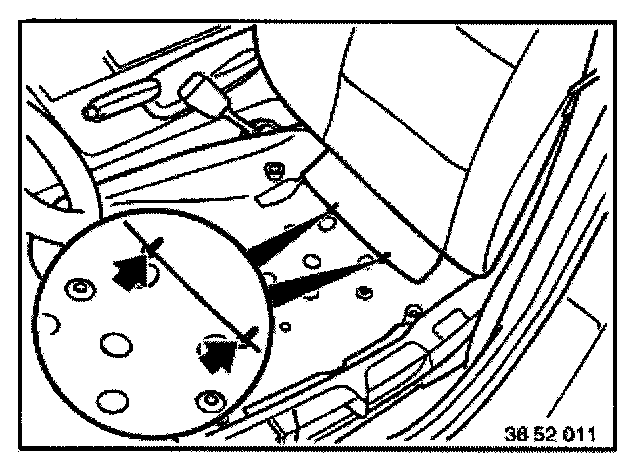

Loosen retainers.







Installation:

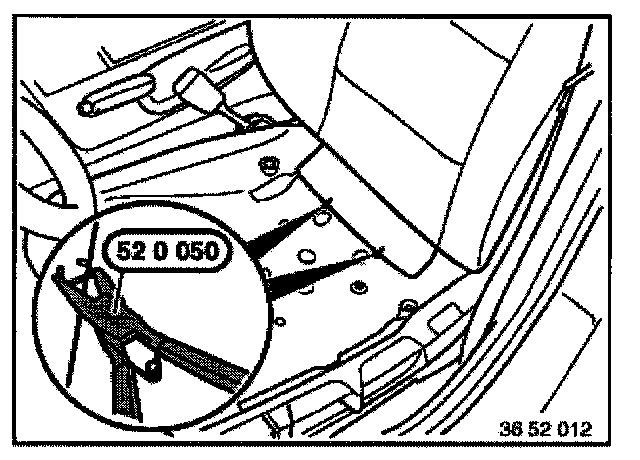

Lock new retainers by bending with special tool 52 0 050.

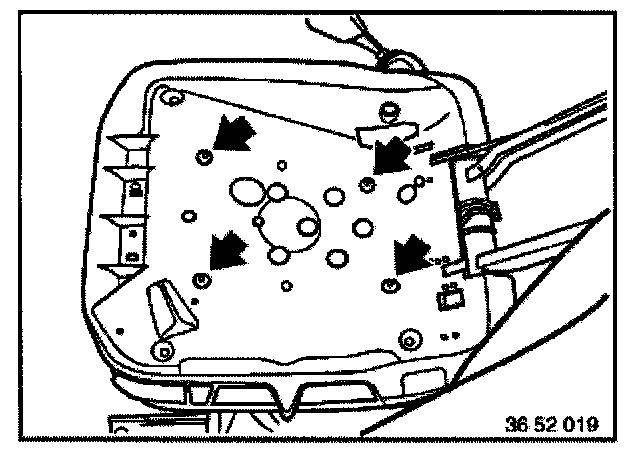

Unscrew screw.
Turn cushion shell around.

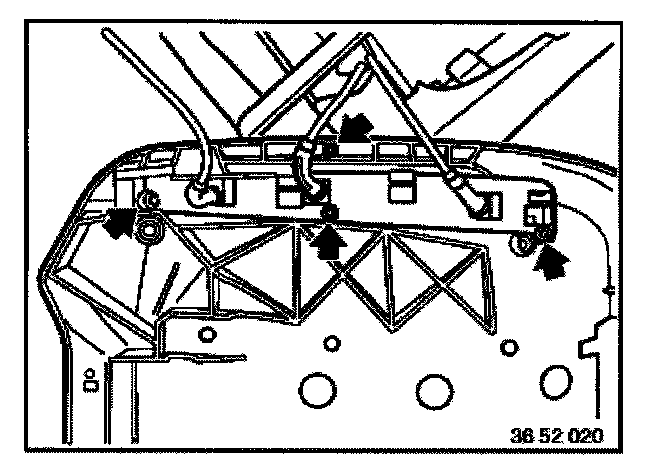

Unscrew bolts.

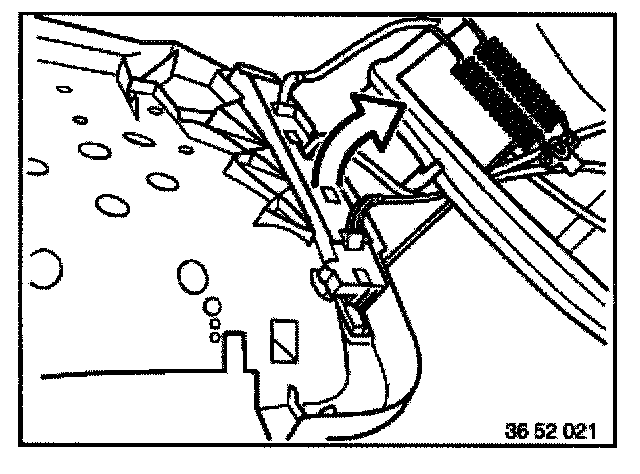

Pull seat controls off cushion shell upwards.
