Replacing Cushion Cover For Sports Seat

Replacing cushion cover for left or right sports seat


Remove seat cushion,

Remove thigh support holder,

Remove thigh support cover,








Detach cushion cover (1) at tensioning strip tips (arrows).

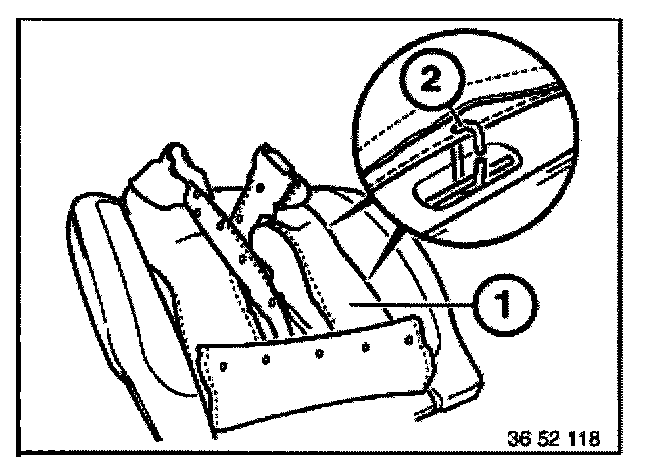

Fold cushion cover (1) together and cut off retainers (2) in padding (foam rubber).
Remove cushion cover.


NOTE: Remove remainders of retainers.


Installation:
Pull securing rods from old cover.

Make cuts in new cover and slide in securing rods.







Installation:
Lock new retainers by bending with special tool 52 0 050.

(1) Padding
(2) Retainer
(3) Securing rod in padding
(4) Securing rod in cover
(5) Cover
