Replacing Cushion Cover For Front Seat

Replacing cushion cover for left or right front seat


Remove seat cushion,

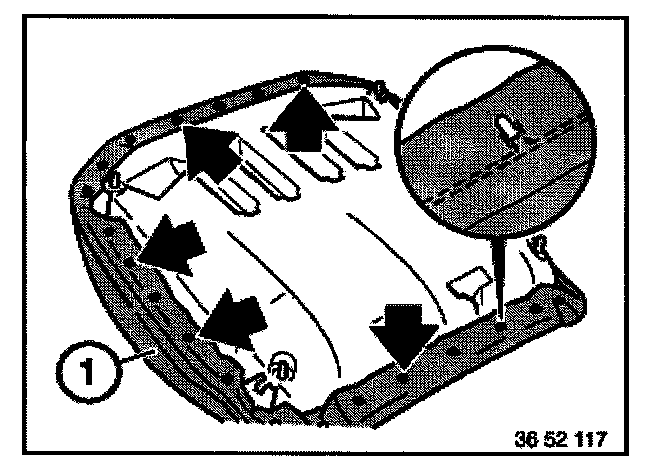

Detach cushion cover (1) at tensioning strip tips (arrows).







Fold cushion cover (1) together and cut off retainers (2) in padding (foam rubber).
Remove cushion cover.


NOTE: Remove remainders of retainers.


Installation:
Pull securing rods from old cover.

Make cuts in new cover and slide in securing rods.







Installation:
Lock new retainers by bending with special tool 52 0 050.

1 Support
2 Clip
3 Retaining rod in support
4 Retaining rod in cover
5 Cover
