Replacing Front-End Seat Up/Down Drive

Replacing front-end seat up/down drive

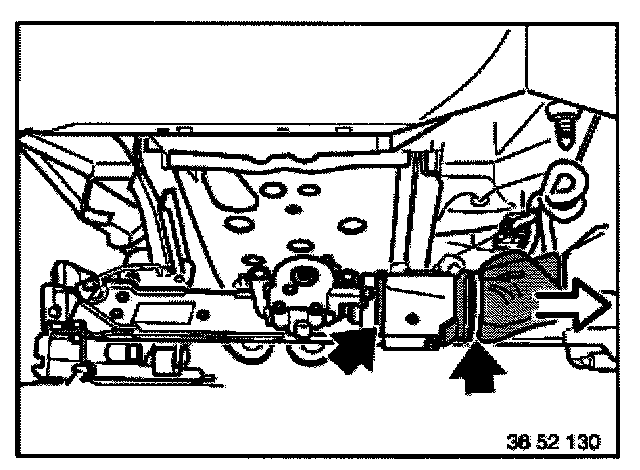

Loosen cable straps and pull off rubber grommet towards outside.







Loosen cable strap and disconnect plug.
Unlock and pull off plug receptacle in forwards direction.
Remove screws and remove drive.







Installation:
Connect special tools 61 2 071 and 61 2 072 (adapter leads) on white plug and 12 V power supply source.

Check function.
