Control Module Diagnosis/Troubleshooting

CONTROL MODULE DIAGNOSIS/TROUBLESHOOTING:

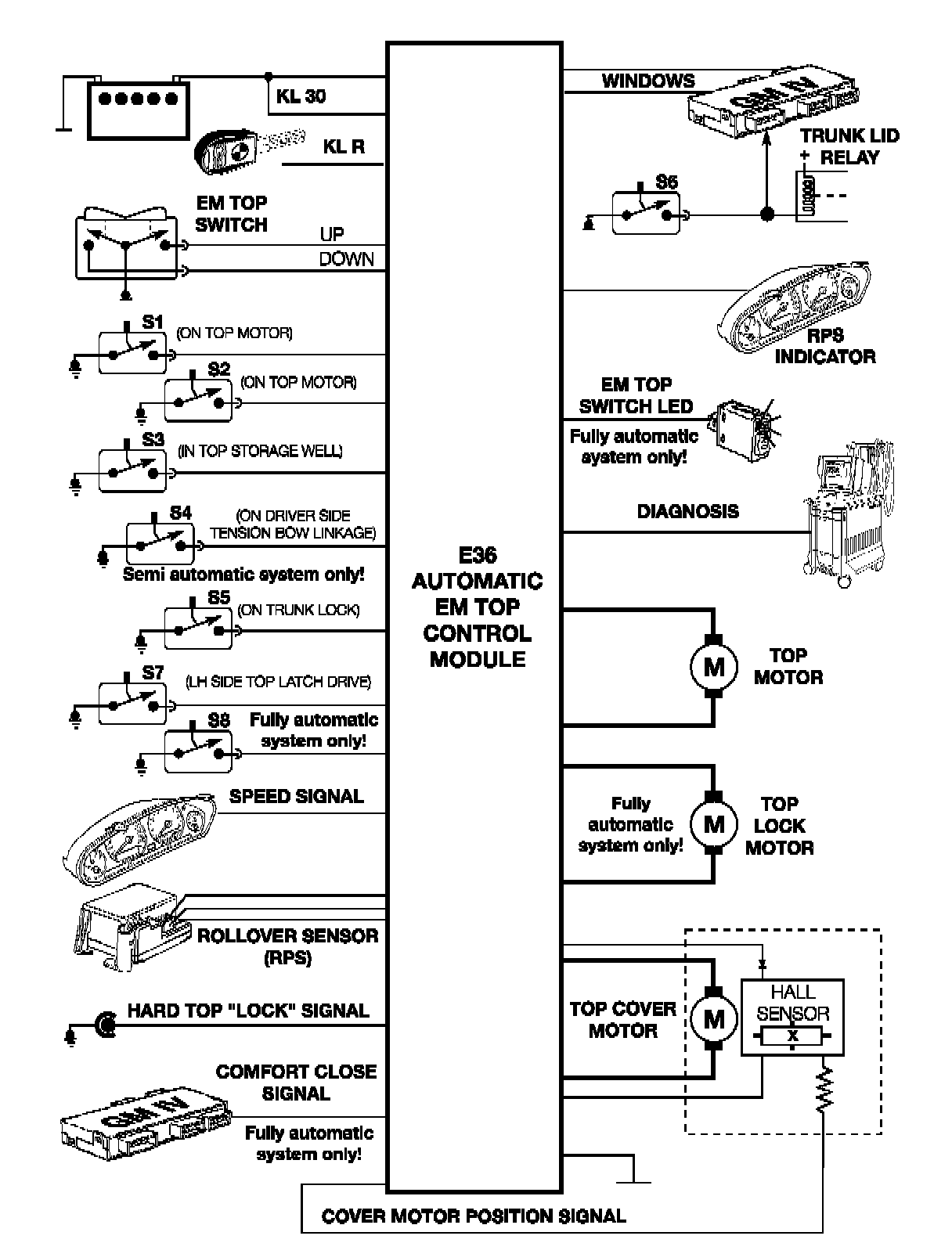

Control Module Inputs / Outputs:

^ Faults that occur during operation of the top are stored in the CVM.

^ They are accessed with the DIS Tester or MoDiC.

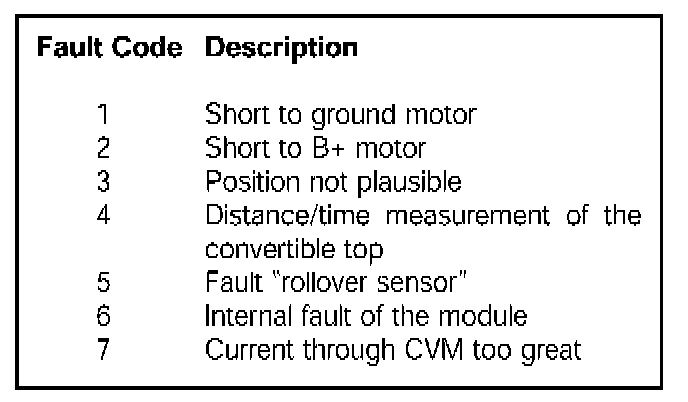

^ The table reflects the possible fault codes stored in the CVM.

^ Additionally, the diagnostic requests (status) and component activation function provides quick diagnostic checks of signal status and output function of components.

^ Always verify the control module identification against the tester display screen when testing or troubleshooting the EM top system.

^ Always check any associated or inter-connected systems when troubleshooting EM top problems. (ie: ZKE IV).

^ Check the coding data to make sure the control module is coded correctly for the specific top system in the vehicle.

^ Always use the latest software available to test and troubleshoot the system.
