Overview of Convertible Top Attachments

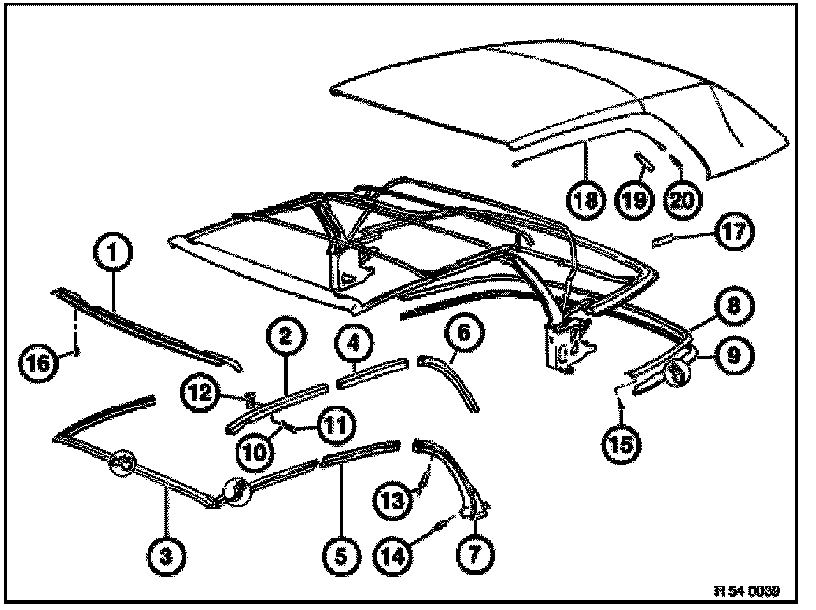

Overview of convertible top attachments






1 Front rail
2 Rail L/R
3 Front seal
4 Rail L/R
5 Window guide L/R
6 Rail L/R
7 Window guide, rear L/R
8 Rail
9 Seal
10 Washer
11 Bolt
12 Spacer
13 Rivet
14 Rivet
15 Raised countersunk head tapping screw
16 Self-tapping screw
17 Mucket
18 Cable
19 Insulating hose
20 Spring
