Replacing Motor for Convertible Top Lock (Power/Fully-automatic)

Removing and installing/replacing motor for convertible top lock (power/fully-automatic)

Removing and installing finisher on convertible top lock, Replacing Finisher on Convertible Top Lock (Electric Motor/Fully-automatic)

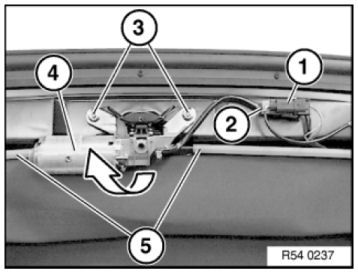

Pull off plug connections (1) and (2), unlock both housings and remove from bracket.

Loosen nut (3), pull motor (4) downwards to remove and slide off input shaft (5).

Installation:
The two input shafts (5) must be at "Open" limit position (microswitch (S8) tripped).
