Electrical - Mechanical (EM) Top

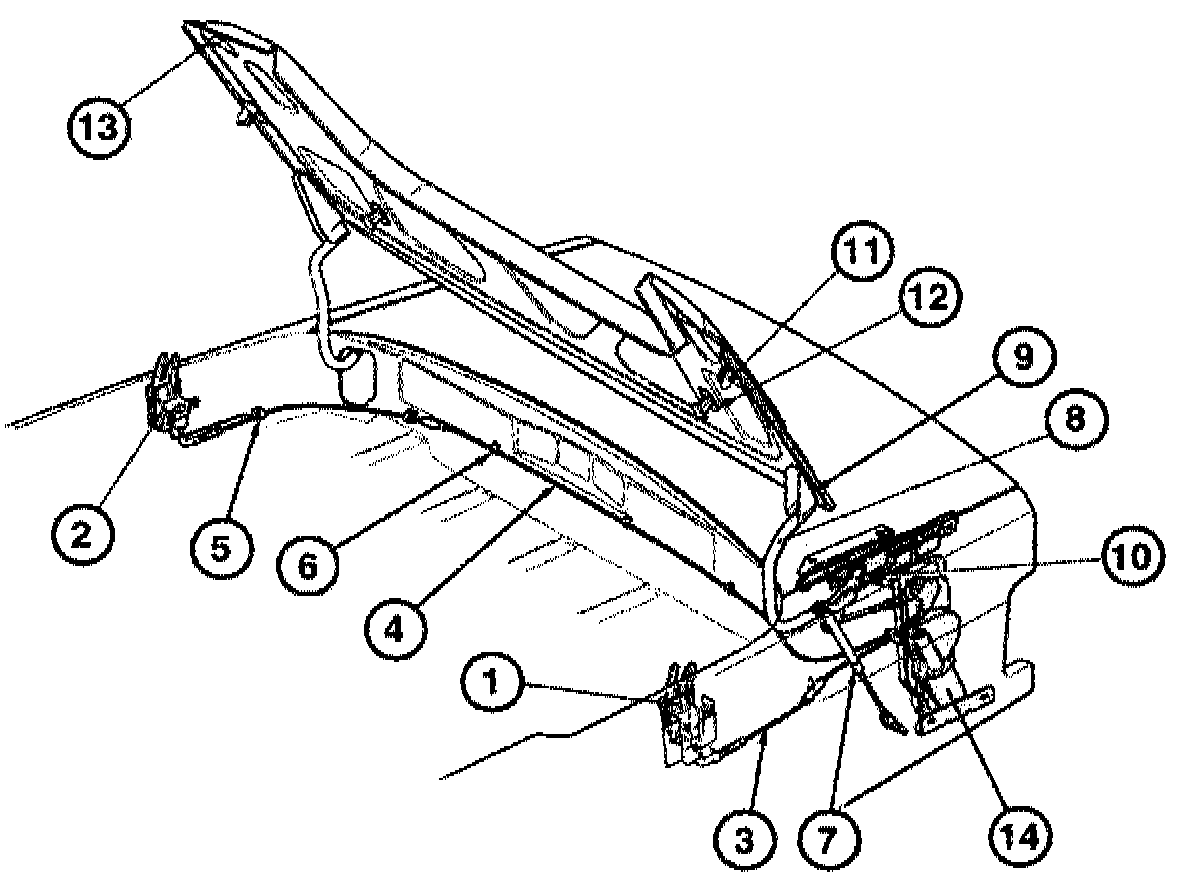

Arrangement of Convertible Top Cover and Drives (EM Convertible Top):

1 Soft top compartment cover lock, left
2 Soft top compartment cover lock, right
3 Bowden cable, left
4 Bowden cable, right
5 Clip
6 Cable clip
7 Gas strut
8 Hinge bracket L/R
9 Support
10 Retainer
11 Closing bracket L/R
12 Detent L/R
13 Emergency detent L/R
14 Complete convertible top lid drive
