Convertible Top Deck Lid Strut: Service and Repair

REPLACING LEFT AND RIGHT GAS STRUTS FOR SOFT TOP COMPARTMENT COVER:

- Remove soft top compartment cover.
- Lift soft top out of soft top compartment.

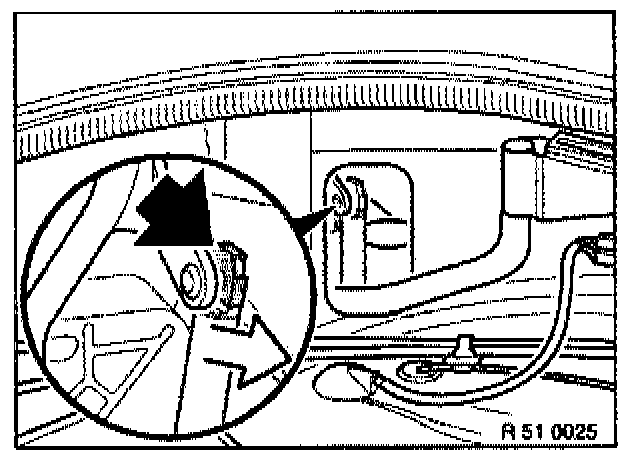

- Lift gas strut out downwards, insert in available bore and lower the linkages.




- Remove tab washer, raise gas strut upwards and lift out.
