Left Side

Removing and Installing or Replacing Left Soft Top Compartment Cover Lock







Open side windows.
Unlock soft top and raise over dead center.
Lift clamping bracket and soft top compartment cover upright.







Unfasten screws, disconnect linkage on forced locking (actuator motor) and remove soft top compartment cover lock.

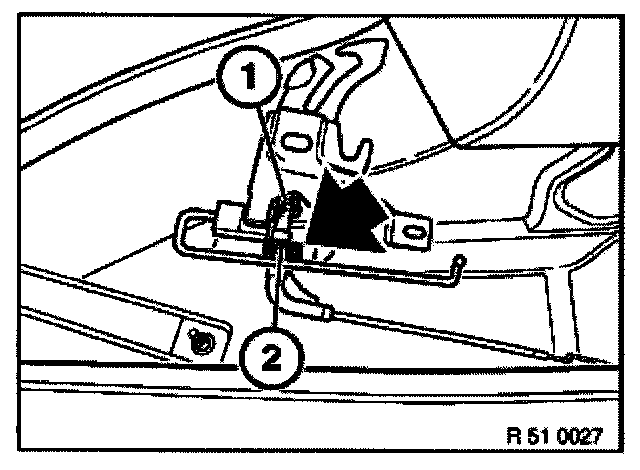

Remove tab washers (1) and (2).
Squeeze together locking device and lift out Bowden cable.

Installation:
Adjusting convertible lid lock, Adjusting Soft Top Compartment Cover/Lid Lock
