Right Side

REPLACING RIGHT BOWDEN CABLE (convertible lid):

- Open side windows.



- Unlock soft top and raise over dead center.
- Lift clamping bracket and soft top compartment cover upright.

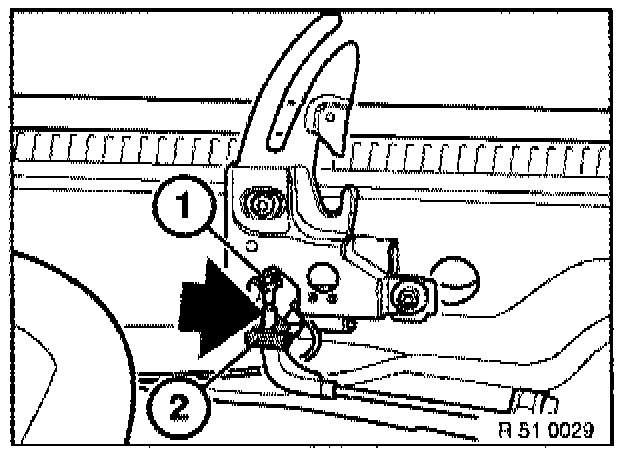

- Remove tab washers (1) and (2).
- Squeeze together locking device and lift out Bowden cable.

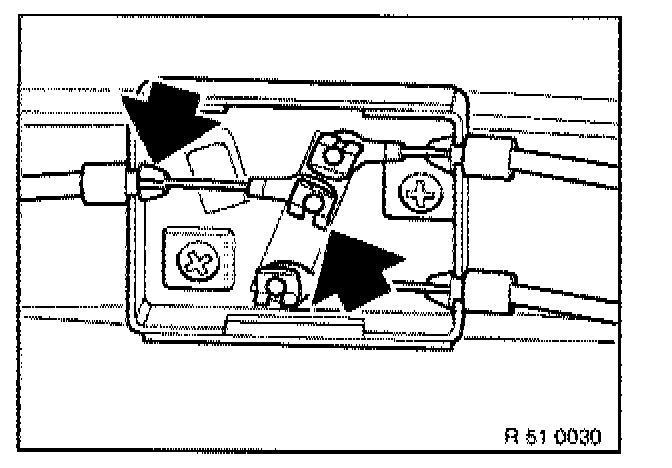

- Lift out cover from reversing mechanism.




- Lift out retaining plate and disconnect Bowden cable.
- Squeeze together locking device and lift out Bowden cable.

Installation Note: Adjust Bowden cable to zero backlash.
