Replacing Right Bowden Cable (Convertible Lid)

Removing and installing / replacing right Bowden cable (convertible lid)






Open side windows.

Unlock soft top and raise over dead center.

Lift clamping bracket and soft top compartment cover upright.

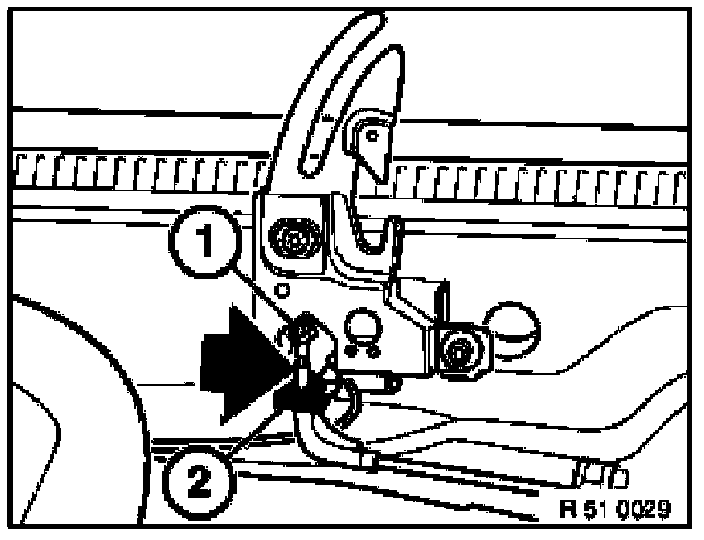

Remove tab washers (1) and (2).

Squeeze together locking device and lift out Bowden cable.

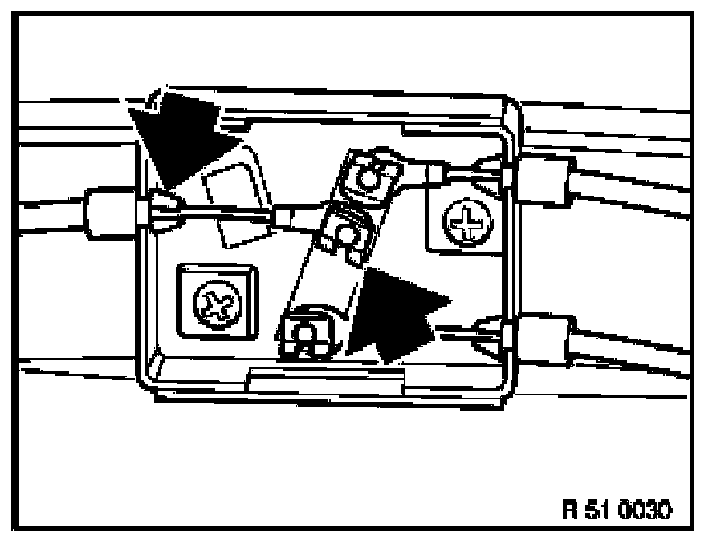

Lift out cover from reversing mechanism.

Lift out retaining plate and disconnect Bowden cable. Squeeze together locking device and lift out Bowden cable.

Installation:






Adjust Bowden cable to zero backlash.
