Replacing Trim For Trunk Lid

Removing and Installing or Replacing Trim For Trunk Lid







Full trim panel:
Unfasten the clips, loosen screw (1) and remove the tool box.
Release clips and remove trim panel for trunk lid.







Partial trim panel;

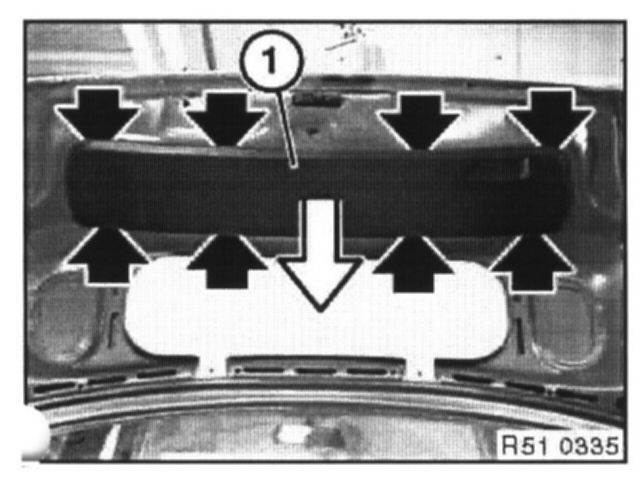

Unclip trim panel (1).







Installation:

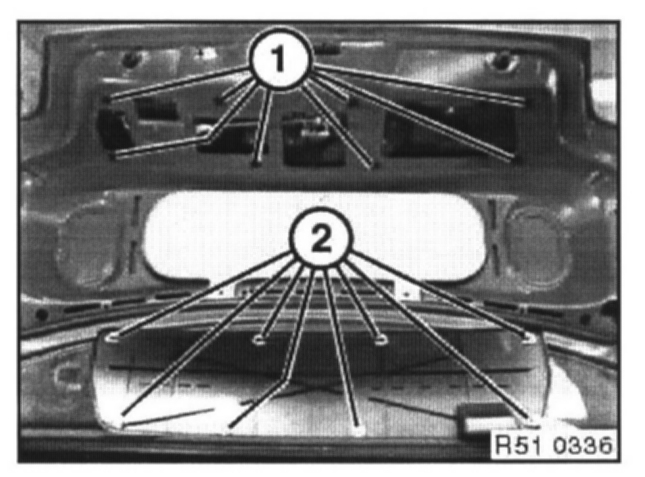

Lift off clips (1) and slide supports (2) into trim panel.
If necessary, replace defective clips (1).
