Trunk Trim
>>
Replacing Luggage Compartment Floor Trim Panel
Replacing Luggage Compartment Floor Trim Panel
Removing and Installing/Replacing Luggage Compartment Floor
Trim Panel
Open trunk lid.

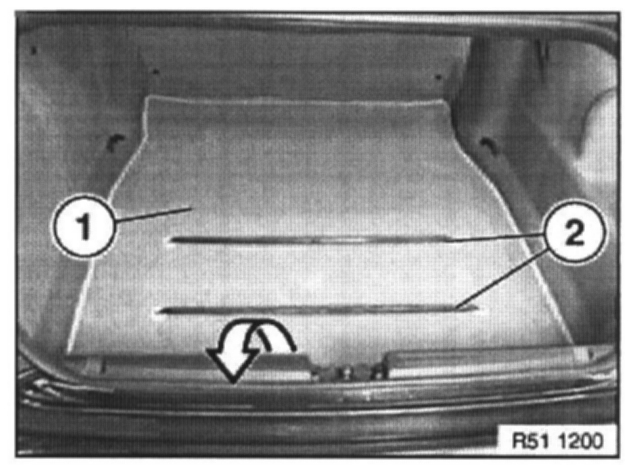

Take out luggage compartment floor
trim panel
(1).
Only replace:
Unhook tensioning belts (2).
