Replacing Rear Entrance Cover Strip

Removing and Installing or Replacing Rear Left or Right Entrance Cover Strip (Convertible Interior)

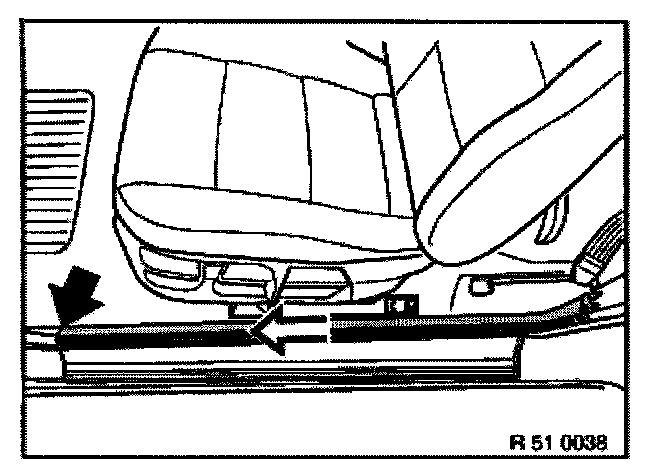

Slide entrance strip approx. 20 mm forwards and remove.

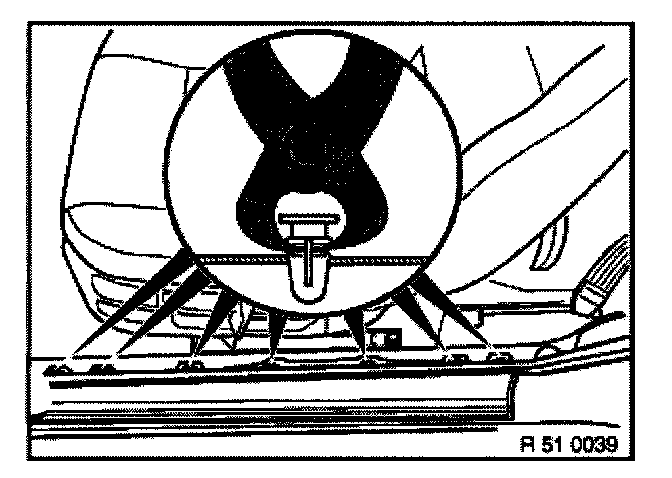

If necessary, remove front cover strip from 1st clip.

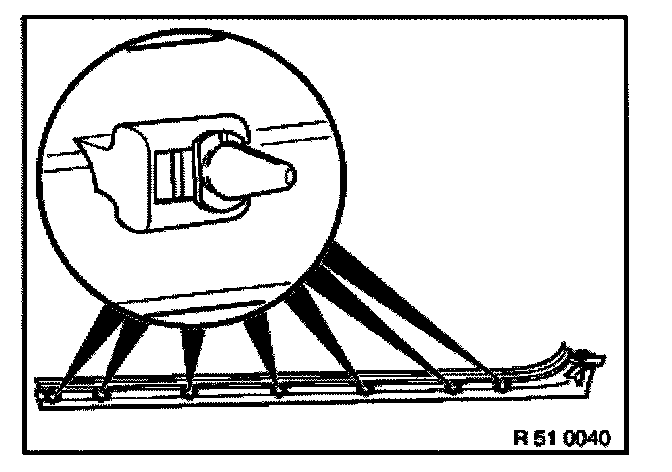

Compress clips with pliers and pull them out (head of pliers ground to size).







Installation:
Soak clips for a period in water.

Install clips and align.
If necessary, replace damaged clips.







Installation:

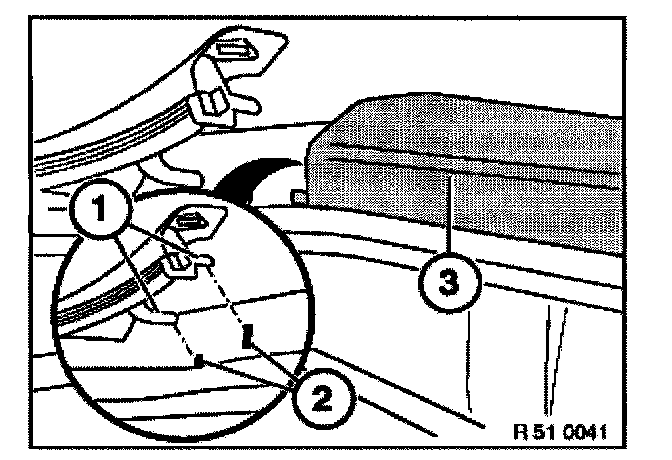

The lugs (1) on the entrance cover strip must be inserted in the bodywork recess (2) below the side trim panel (3).
