Replacing Front Door Trim Panel

Removing and Installing Left or Right Front Door Trim Panel







WARNING!


Model with side airbag:
Follow safety instructions for working on cars with airbag Systems,



CAUTION!

Do not use any sharp-edged tools to remove the panel (risk of damage to side airbag).







Lift out cover plate.
Release screw and remove window crank.

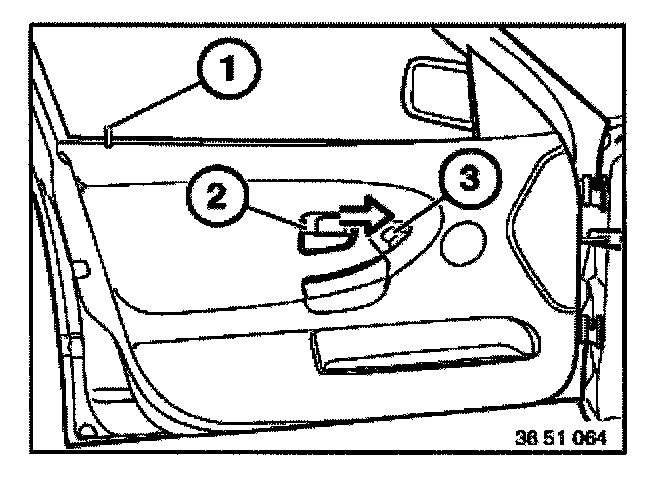

Unscrew catch button (1).
Remove plate (2).
Lever out switch (3) and disconnect plug connection.

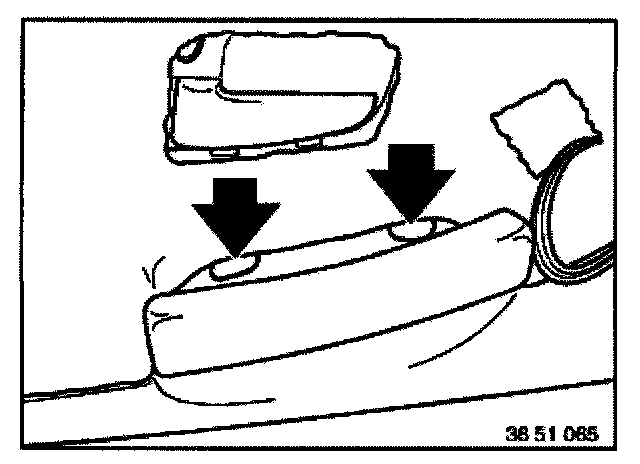

Lever out finishers and release screws underneath.

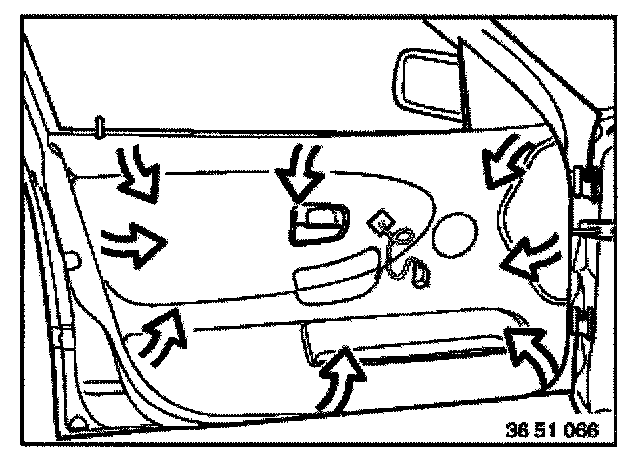

Unclip door trim panel all round with special tool 00 9 318 (universal wedge).
If necessary, disconnect plug connection for speaker.
If necessary, replace damaged clips.







Installation:
If the clips (1) on the door do not stay in the recesses (2) of the door trim (pulled apart or torn), use repair clips.
Cut cover around area of repair clip.
Convertible and coupe:
Attach repair clip (3) as illustrated in diagram.
Sedan and touring:
Twist repair clips (3) through 180 ° and attach.







Installation:
After fitting the door trim, proceed as follows:
- Open door window.
- Lock with vehicle key.
- Check whether linkage of safety button can move freely.
- If necessary, align linkages.
