Rear Shelf: Service and Repair

Removing and Installing/Replacing Trim For Oddments Tray (Back Shelf)

Remove trim for oddments tray (back shelf):
Remove both trim panels from rear roof pillar,

Remove rear seat and backrest,







Unscrew seat belt bolts.

Installation:
Fit window.
Tightening torque,

Front Door Windows:

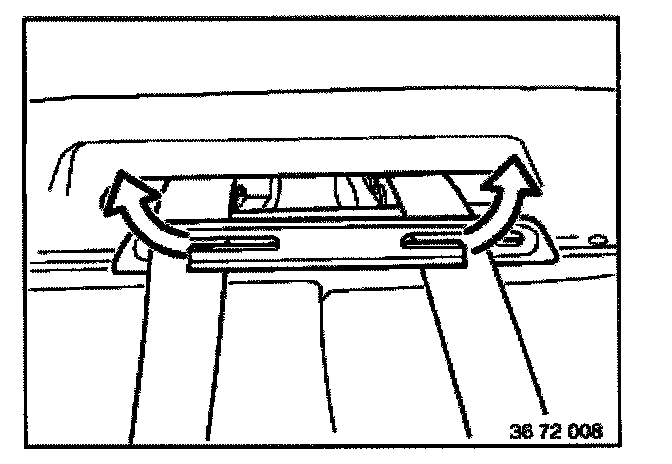

Lift cover out, work seat belt strap out and guide it through opening in hatrack.

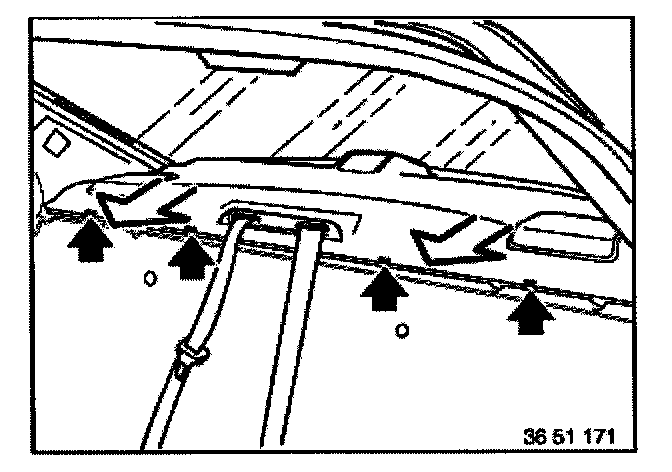

Unclip clips and remove hatrack in forwards direction.







NOTE: The operation "Removing trim for oddments tray (back shelf)" ends here.


Only replacement (version with rear window roller blind):
Compress rear window roller blind and pull backwards to remove.

Installation:
Perform function check (roller).







Only replace:
If applicable, remove loudspeaker frames.
If necessary, remove grill for 3rd brake light.
