Replacing Trim Panel For Rear Roof Pillar

Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar)

Coupe
Open up rear side window.







Partially remove edge protection from around C-pillar.

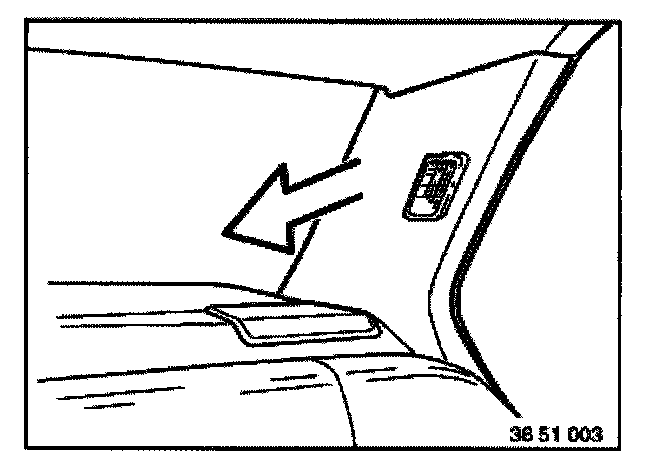

Unclip C-pillar trim panel and disconnect inside light plug.







Installation:
Remove clips and insert in body.
Only replace:

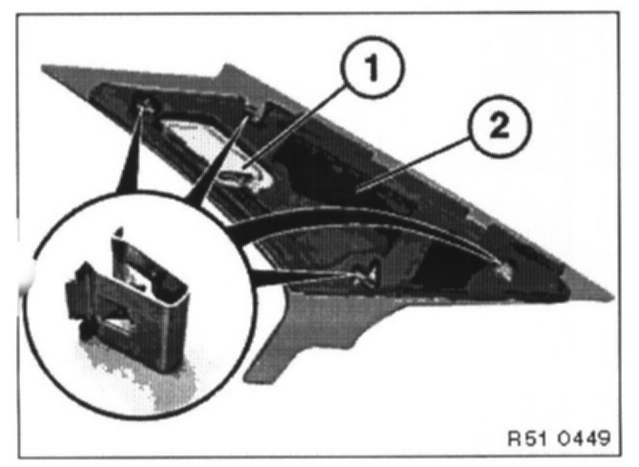

Install interior light (1) and insulating mat (2) in new trim panel.
