Rear

Replacing two additional rubber mounts for rear axle carrier (rubber mount at rear)

Rear axle lowered, refer to front bushing replacement
Unfasten stabilizer bar on rear axle carrier.





Both pulling arms must be applied at openings of mount on support pipe.
Heat sleeve with a hot air blower.

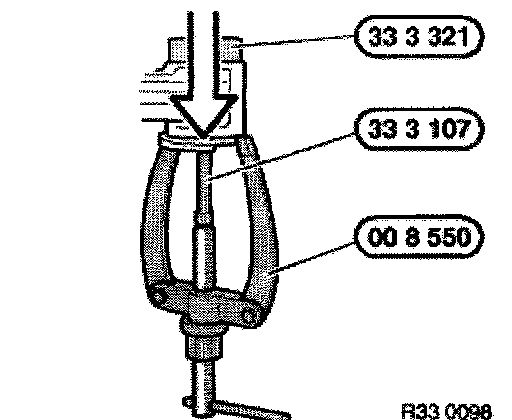

Pull out rubber mounts using special tool 00 8 550/33 3/107/321.





Installation:
Rubber mounts may only be installed in pairs of same make.

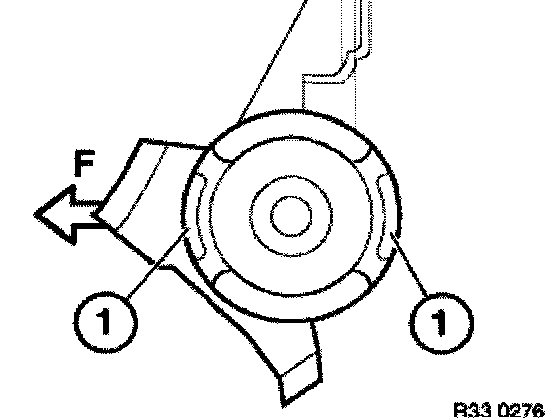

Openings (1) in longitudinal axis of vehicle (F).

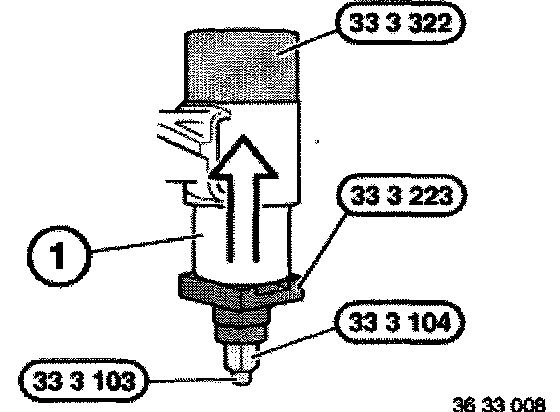

Coat new mount (1) with Circolight, or equivalent, and pull in with special tool 33 3 103/104/322/223.
