Front Door Panel: Service and Repair

WARNING: For models with airbags, follow safety instructions.
If work is carried out in the area of airbag systems, e.g. on:
- Door trim panels
- Interior trims
- Instrument panel ect.
the ignition must be turned off in each case.
- The ignition must always be off.
- The ignition key must be removed from the ignition lock.
This eliminates the risk of injury

CAUTION: DO NOT use any sharp-edged tools to remove the panel (risk of damage to side airbag)

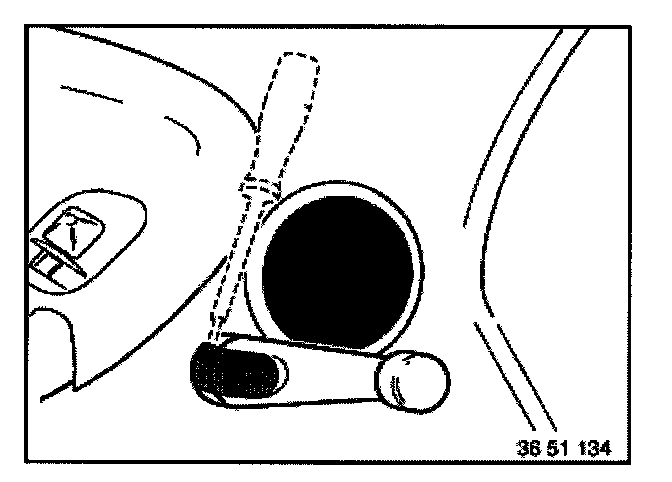

- Lift off cover, remove screw and window winder.

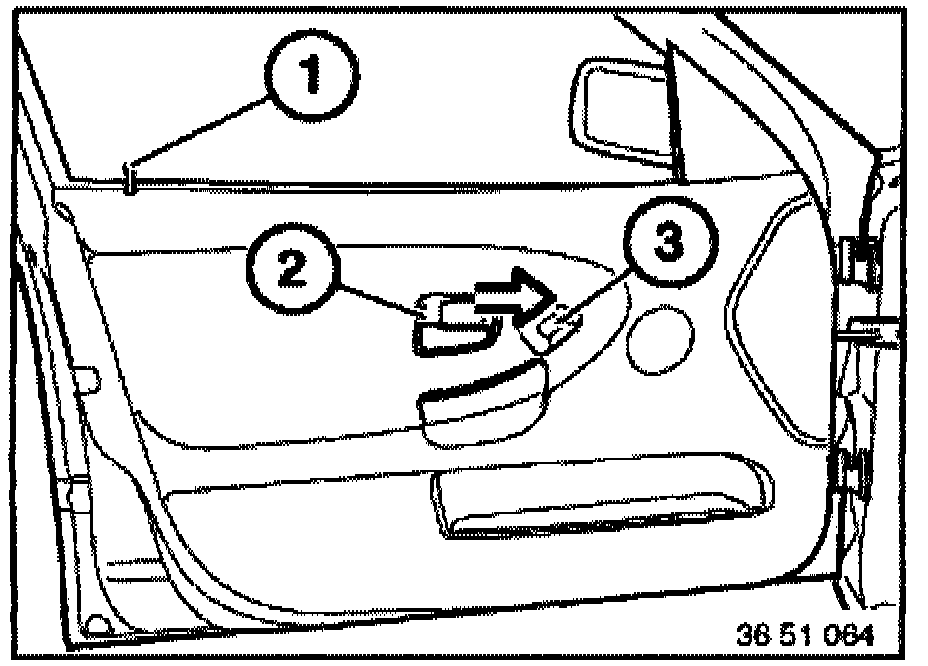

- Unscrew catch button (1).
- Remove plate (2).
- Lever out switch (3) and disconnect plug.

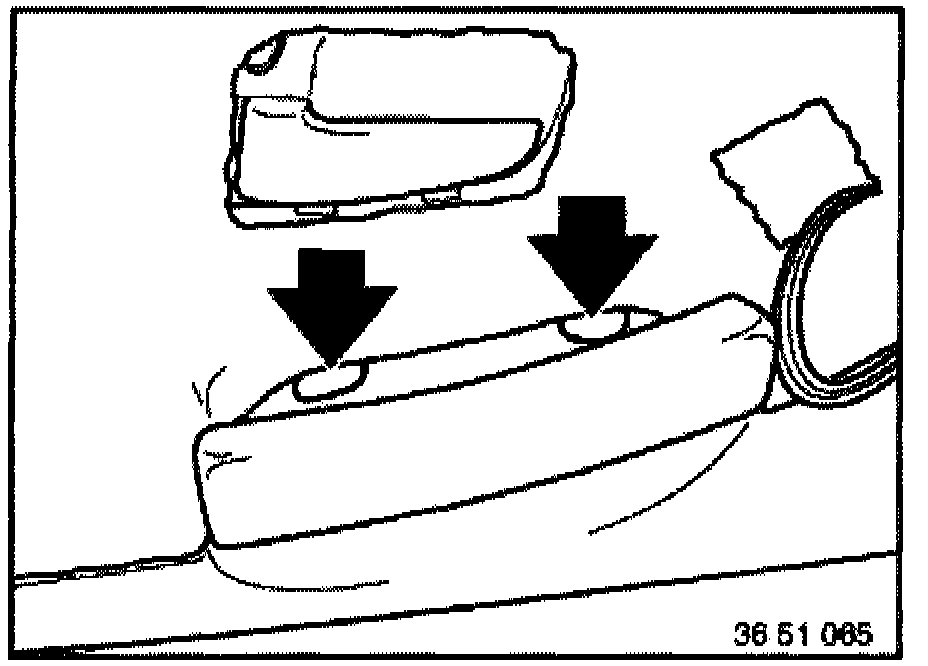

- Lever out finishers and release screws underneath.

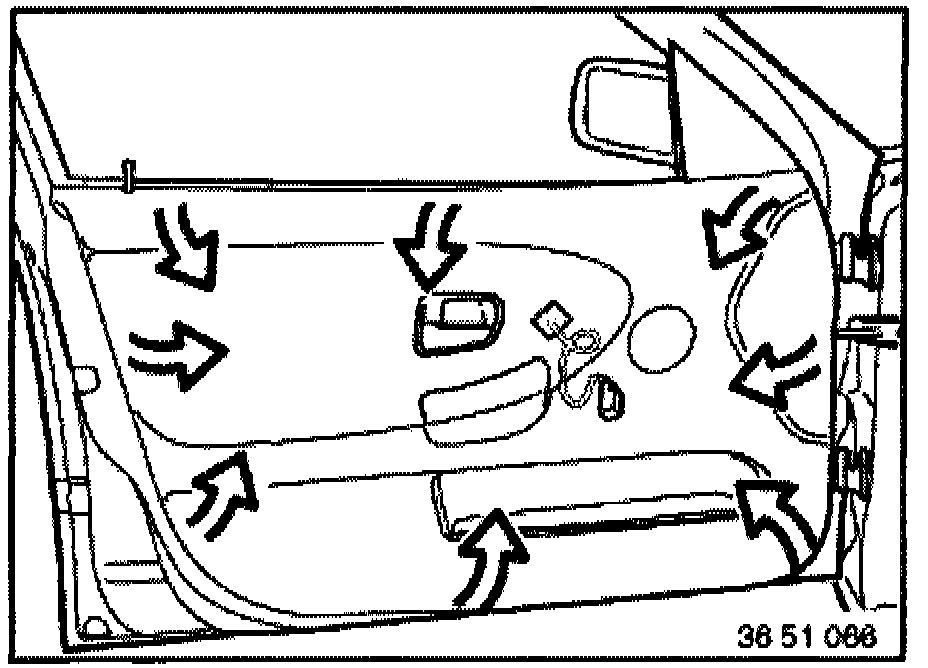

- Unclip door trim panel all around.
- If necessary, disconnect plug on loudspeaker.
- If necessary, replace damaged clips.





Installation Note:

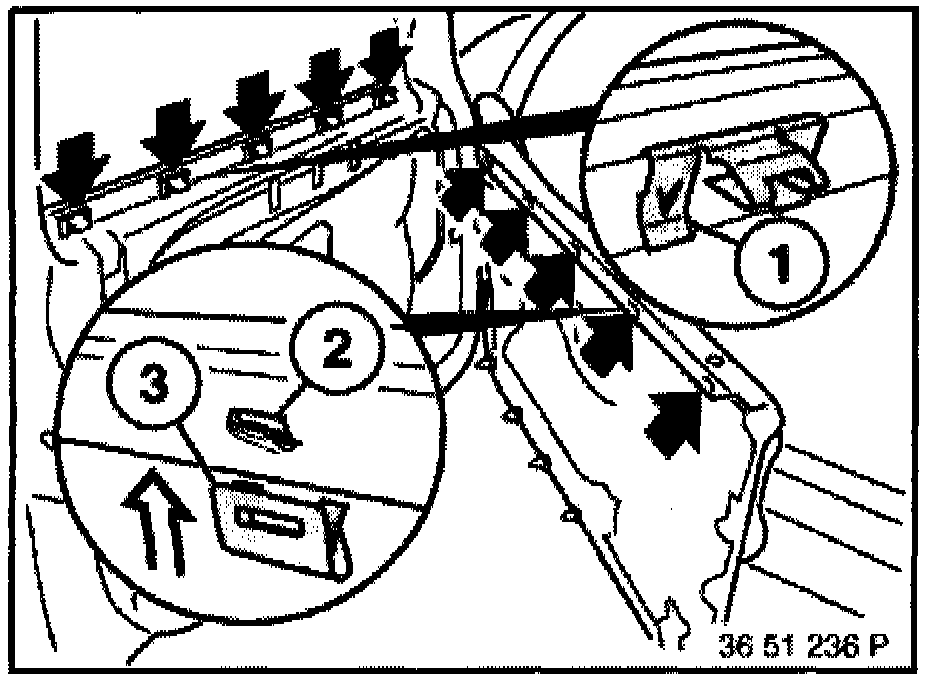

- If the clips (1) on the door do not stay in the recesses (2) of the door trim (pulled apart or torn), use repair clips.
- Cut cover around repair clip and attach door trim.

Convertible and Coupe:
- Attach repair clip (3) as illustrated in diagram.

Sedan and Touring:
- Twist repair clips (3) through 180° and attach.

Installation Note:
After fitting the door trim, proceed as follows:
- Open door window.
- Lock with vehicle key.
- Check for ease-of-movement on retaining button linkage.
- If necessary, align linkages.
