Rear Bumper Face Bar: Service and Repair

Replacing Side Inlet For Rear Bumper As Service Sector Solution

Remove bumper,

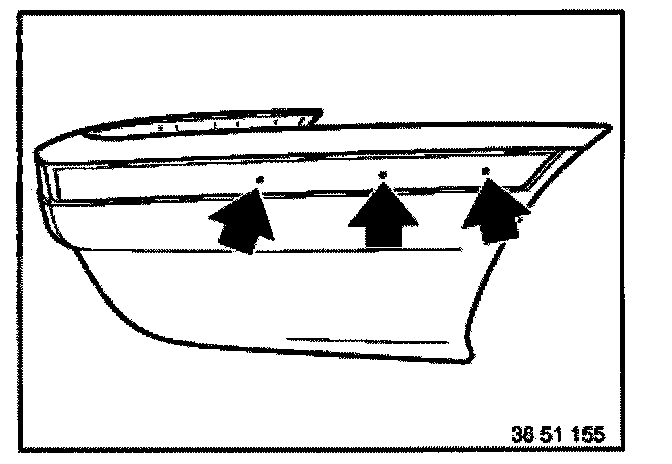

Unclip center and side rubber guards and, if applicable, remove heat shield,

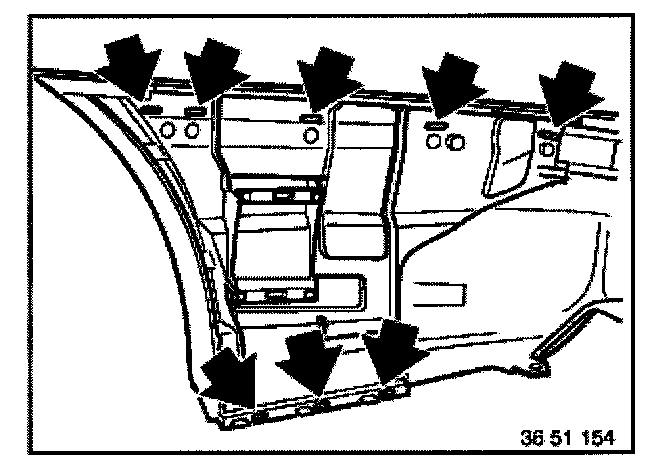

Break welding and remove inlet.

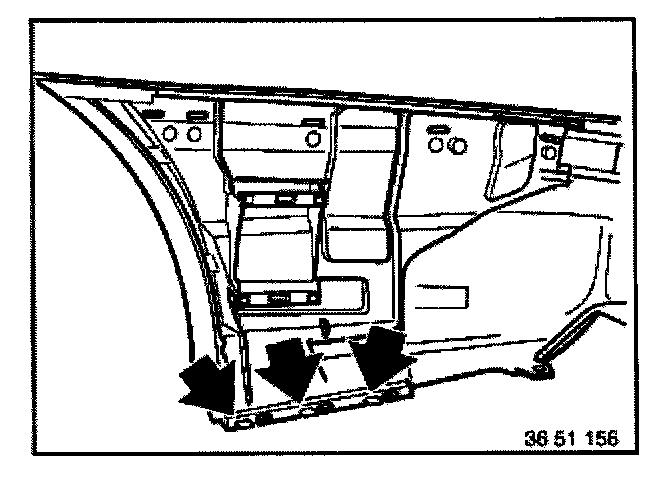

Install new inlet with screws for plastic in provided holes.

Installation:
Length of screw similar to license plate holder screws: approx. 13 mm







Installation:
Press plastic tabs wide with a soldering iron.
