Bavaria C Professional

Checking Connecting Wires
Bavaria C4 is available in two versions, with or without CD player. Controls and receiver are separated from each other for both versions. Controls are located in the dashboard as always, while the receiver and when applicable CD player are in the trunk. Because of this a connecting wire is required from the controls to the receiver and CD player, which later in the course of troubleshooting will be referred to as V1 (without CD player) or V2 (with CD player).

Wires V1 and V2 only differ in length, because connecting wire V2 leads from the controls to the CD player first and from there together with V3 to the receiver.

Connecting wires must be checked for continuity and short circuit
Procedures:
Unplug connecting wire on both ends.

Fit a short circuit bridge to V1 or V2 line on 12-pin Elo connector to control panel (special tool no. 65 1 030). Measure at the other end with a multimeter and test points, whether there is continuity between the various pins.

Remove short circuit bridge. there should no longer be continuity between pins.

Proceed accordingly with the V3 wire. only one other short circuit bridge is used (special tool no. 65 1 040).





Routing of wires without CD player




Routing of wires with CD player




Connections for Control End:
1. Connector, 17-pin (power supply)
2. Connector, 10-pin (to receiver with connecting cable V1 or to CD player with connecting cable V2)
3. Fuse = 3 amperes




Connections for Receiver End:
1. Antennas - various
2. Remote control
3. Fuse = 5 amperes
4. Connector 4-pin (power supply)
5. Connector, 1-pin (electric aerial)
6. Speaker front left
7. Speaker front right
8. Speaker rear left
9. Speaker rear right
10. Connector, 8-pin, (from controls with connecting cable V1 or from CD player with connecting cable V3)
11. Aerial connection





Connections for CD Player End:
1. Connector, 1-pin (12 V control outlet)
2. Fuse = 3 amperes
3. Connector (power supply)
4. Connector (to receiver with connecting cable V3)
5. Connector (from controls with connecting cable V2)





Pin Assignment, 17-Pin Connector (Controls)





Pin Assignment, 4-Pin Connector (Receiver)

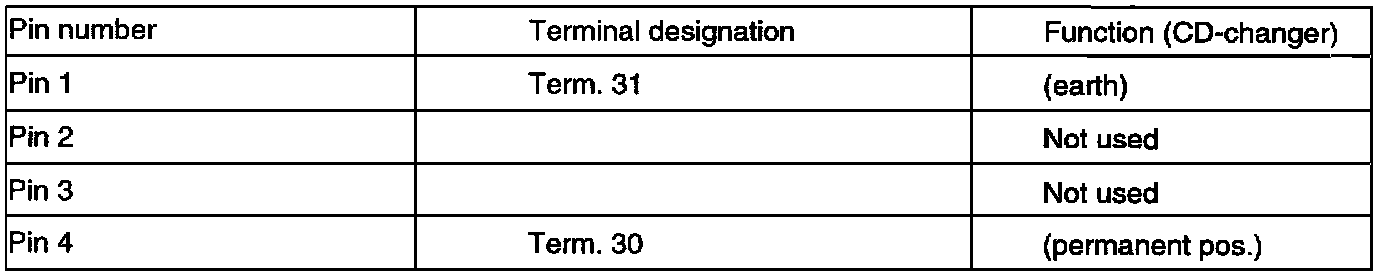

Pin Assignment, 4-Pin Connector (CD Player)
