Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Removing and Installing / Replacing Radio >> Business Radio

Business Radio

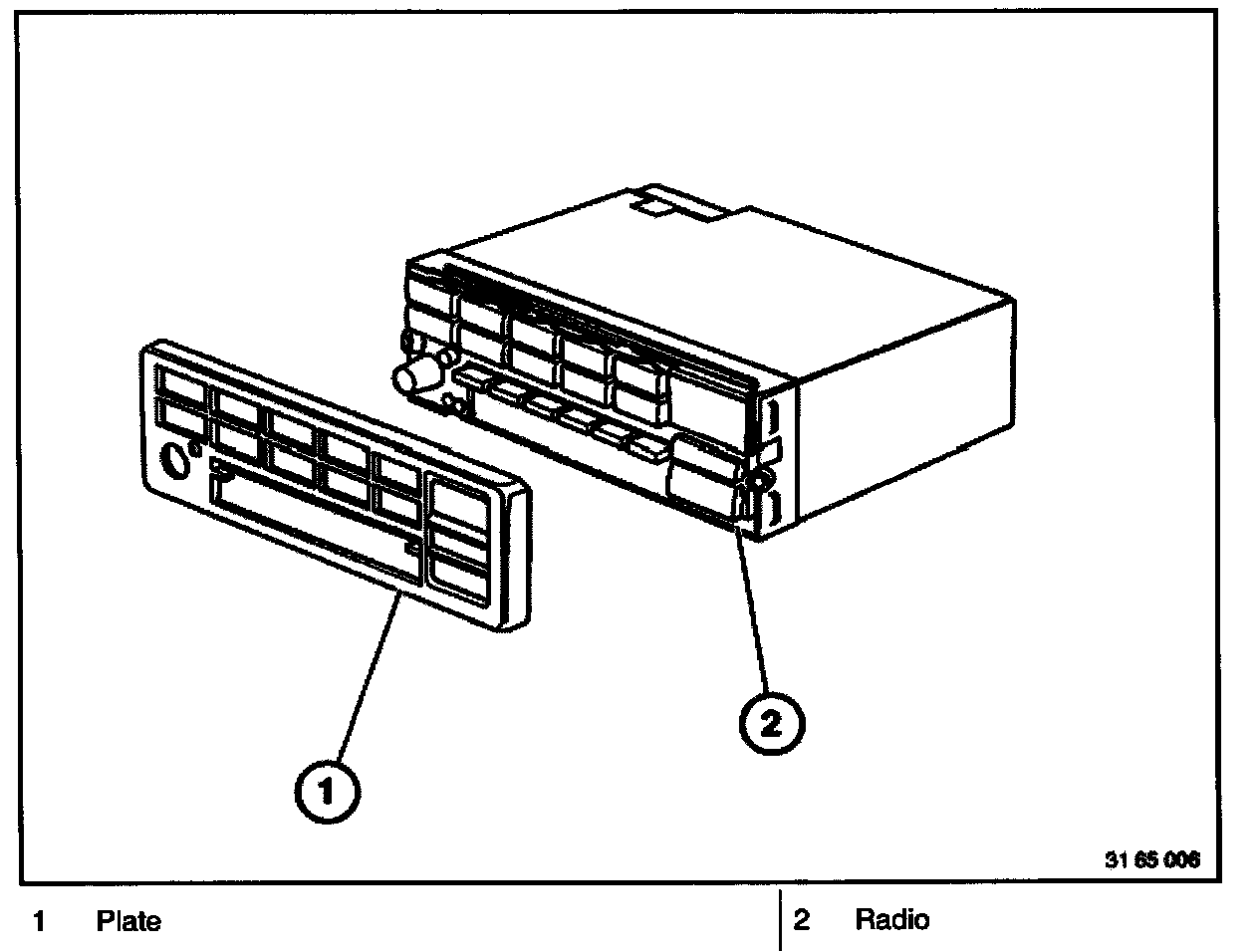

Radio Removal and Installation
Business Radio




1. Plate
2. Radio




- Remove finisher (1), unfasten left or right screws (3) and remove radio (2) through radio aperture.




- Remove retaining bracket (1) and remove connector (2) from radio (3).
