Bavaria C III or C Revers III RDS

Radio Removal and Installation
Bavaria C III or C Revers III RDS

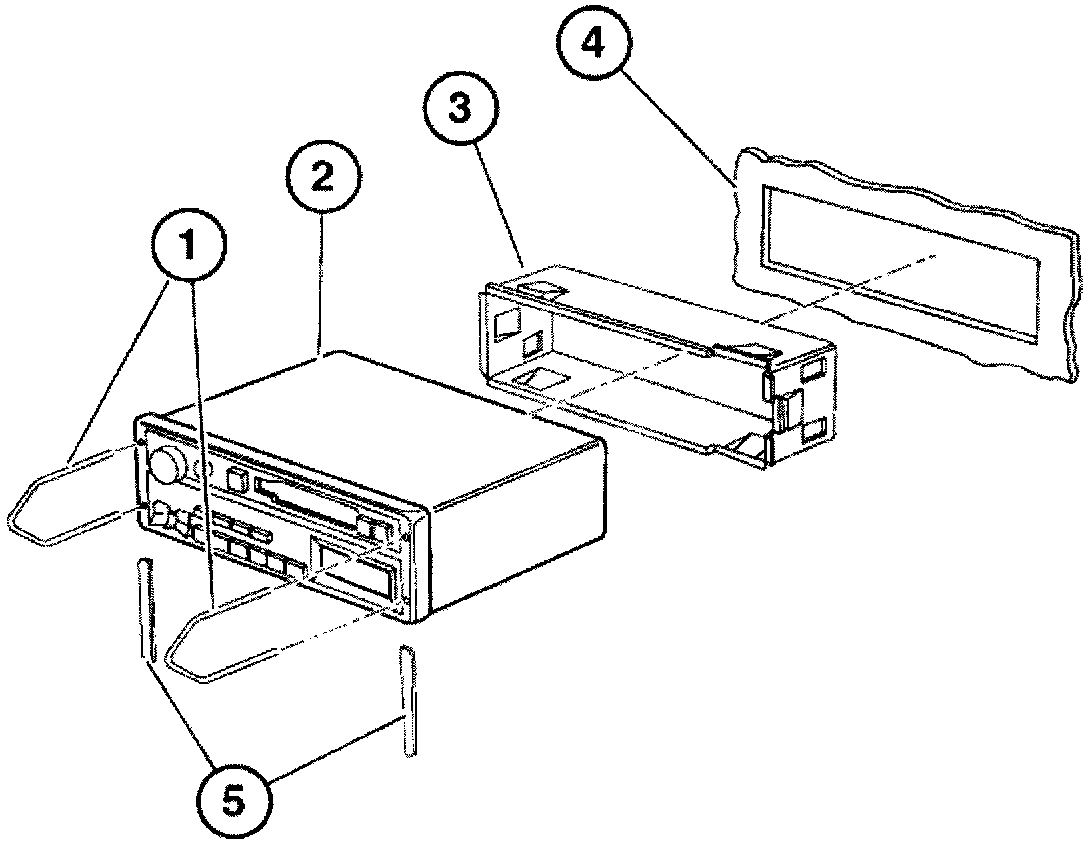

1. Unlocking hooks
2. Radio
3. Radio console
4. Radio opening
5. Cover

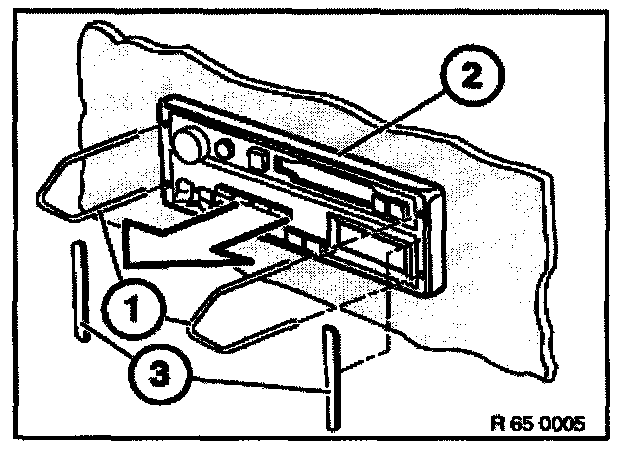

- Unclip covers (3) and remove.
- Press unlocking hooks (1) into radio on left and right sides.
- Pull out radio carefully with hooks.




- Remove retaining bracket (1) and remove connector (2) from radio (3).
