Bavaria C II or C Reverse II




Radio Removal and Installation
Bavaria C II or C Reverse II

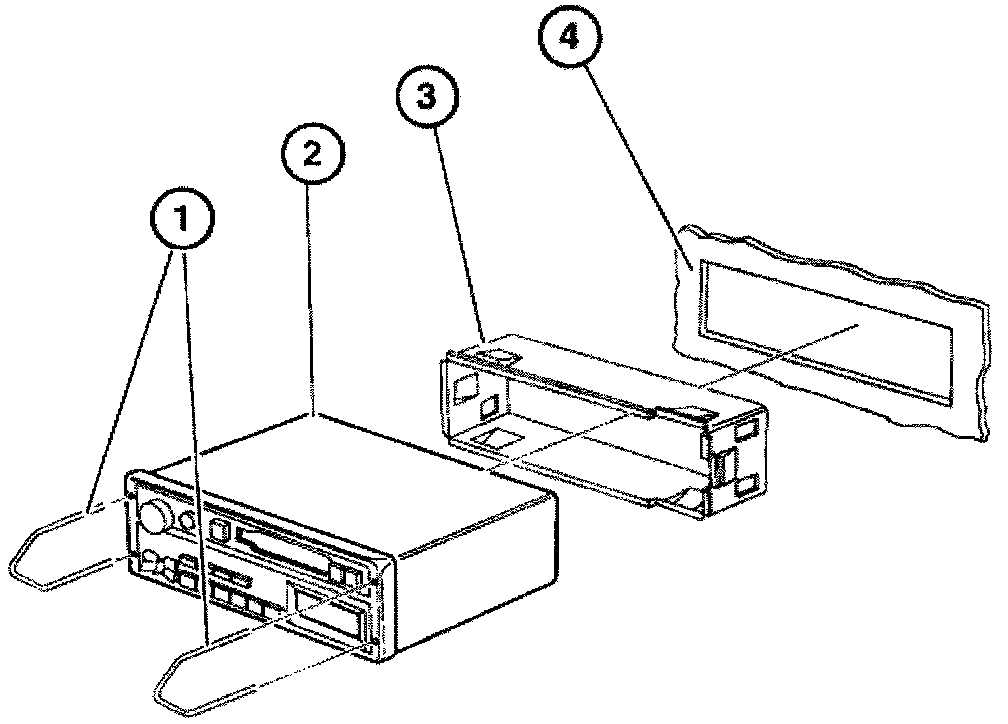

1. Unlocking hooks
2. Radio
3. Radio console
4. Radio opening

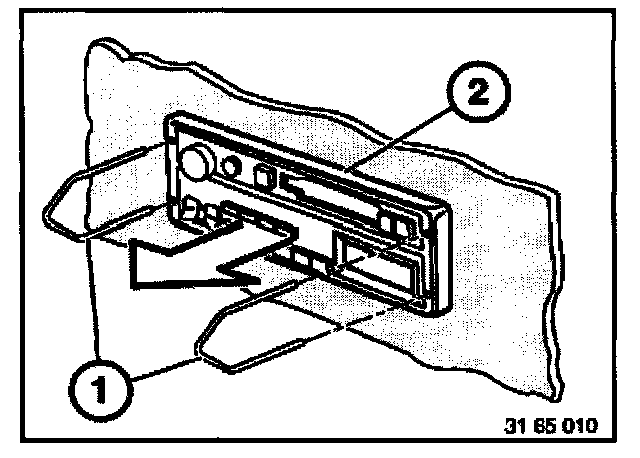

- Press unlocking hooks (1) into radio on left and right sides.
- Pull out radio carefully with hooks.

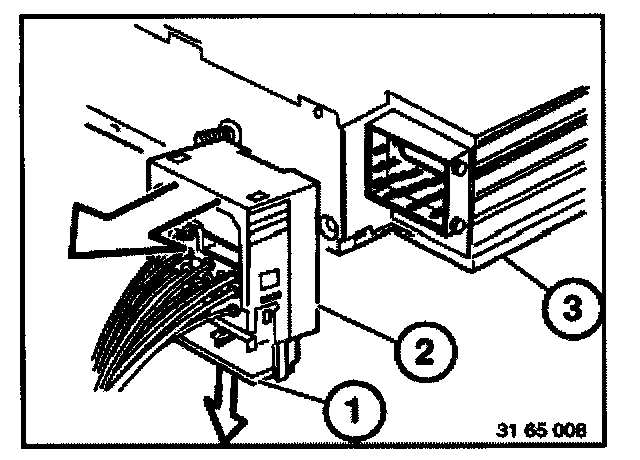

- Remove retaining bracket (1) and remove connector (2) from radio (3).
