Alpine Alarm System - Siren Inoperative
Group 65Sound System,
Cruise, Alarms, Monitors
Bulletin Number
65 08 98
Woodcliff Lake, NJ
April 1998
Product Engineering
SUBJECT:
Alpine Siren Inoperative
MODEL:
3 Series (E36)
Situation:
After fitting Alpine alarm kit, alarm siren is inoperative
Cause:
Relay K108 is factory installed in preparation for Alpine alarm installation. On some vehicles assembled from 10/97, the wrong relay has been installed, causing the siren to be inoperative.
Procedure:

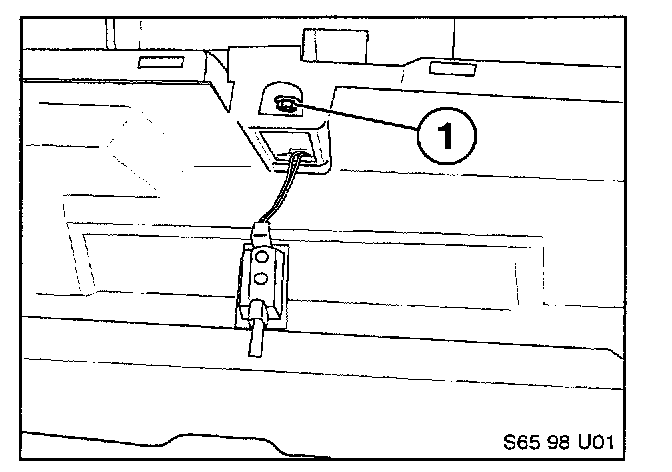

Unclip lens from glove box light, and remove 10 mm glove box retaining bolt (1).
Remove glove box, following Repair Manual instructions 51 16 360

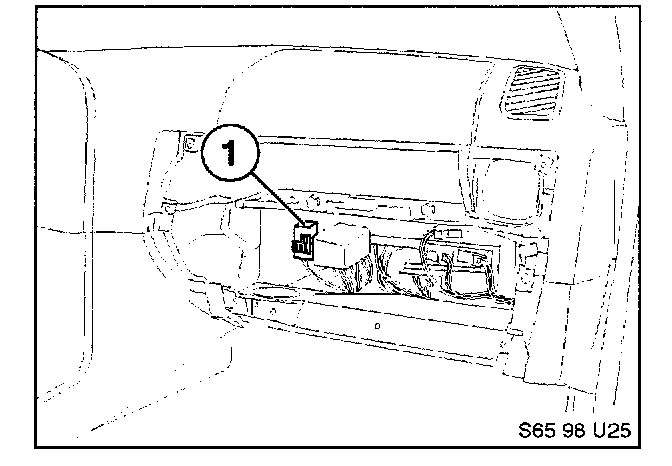

Remove K108 relay (1) and check part number.
Incorrect relay has P/N 61 36 1 388 910, and has five pins.
Correct relay has P/N 61 36 8 364 581 and has four pins.
If necessary, replace relay
Reinstall glove box, and glove box bolt.
Parts Information:
Part Number Description Quantity
61 36 8 364 581 Relay 1
Warranty Information:
Parts and labor are reimbursable under the terms of the BMW New Car Limited Warranty of 4 years/50,000 miles.
Defect Code: 61 36 91 23 00
Labor Operation: 51 16 360 Remove and reinstall glove box
Labor Allowance: 4 FRU
or, if done in conjunction with any other main work
Labor Operation: +51 16 860 Remove and reinstall glove box
Labor Allowance 3 FRU
