Shock Sensor: Service and Repair

Replacing Impact Switch

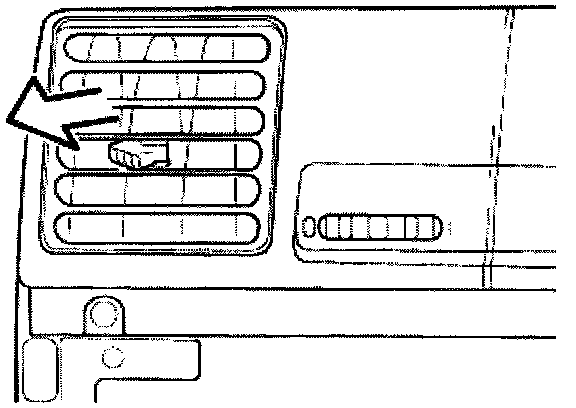

- Fold down air grille and unlock over pressure point.
- Position air nozzles straight and remove.

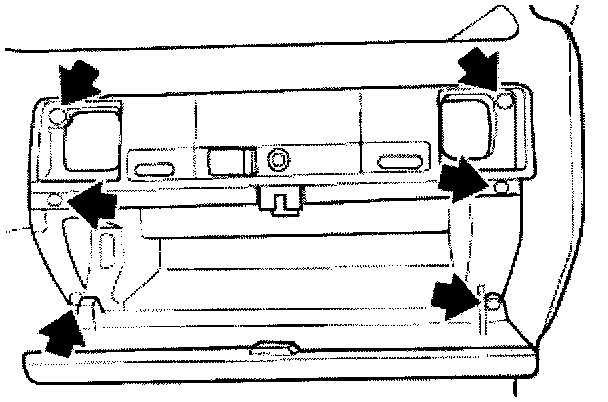

- Unscrew bolts.
- Remove glove compartment.
- Remove bottom A-column panelling.
- Remove instrument panelling at bottom.

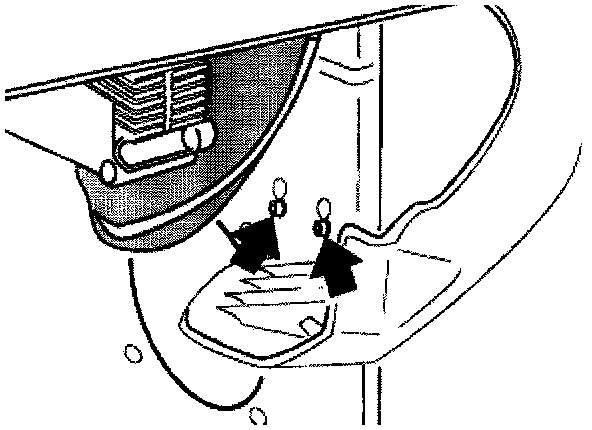

- Unscrew bolts.
- Work impact switch out of slot.
- Disconnect connector.




Installation:
- Always check installed position!
