Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Anti-Theft System (Alpine) >> Front and Rear Door Jamb Switches

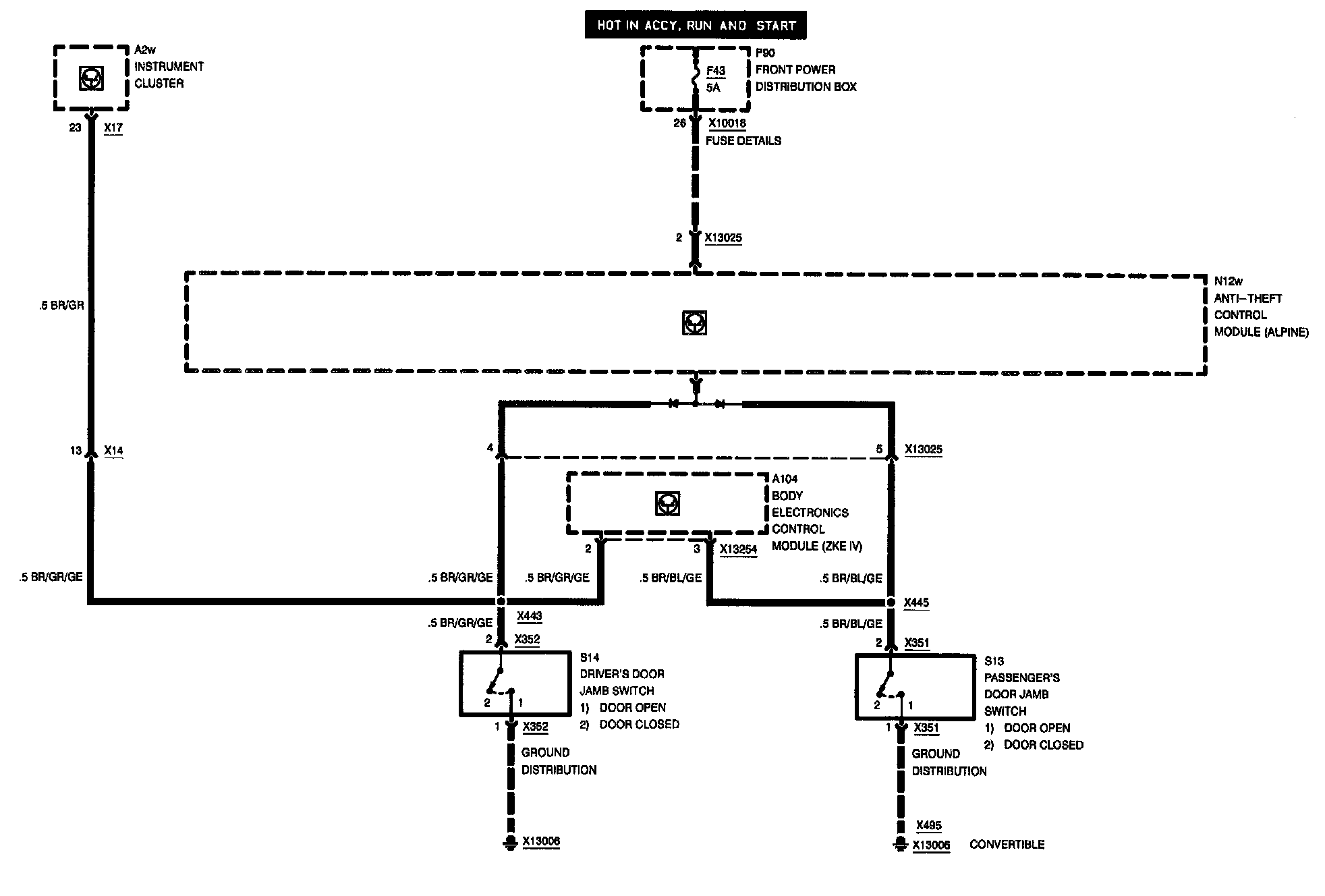

Front and Rear Door Jamb Switches

Anti-Theft System (Alpine): Front And Rear Door Jamb Switches:
