Replacement

Replacing rubber mount for final drive (compact, Z3)

Note:
Remove rear muffler, refer to Exhaust System.
Pull off speedometer signal plug.

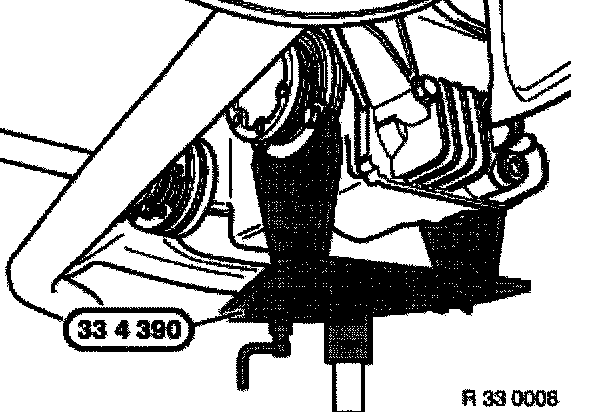

Support final drive from underneath with a transmission lifter and special tool 33 4 390.

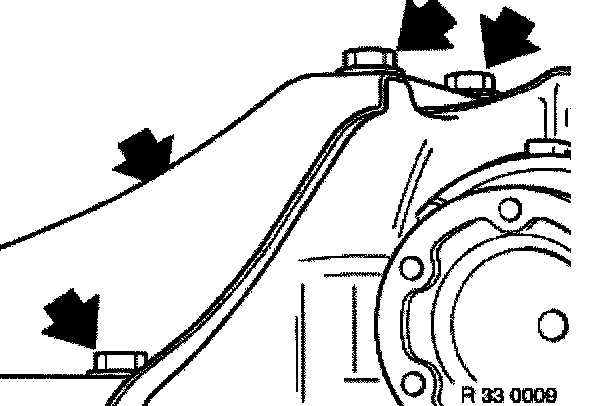

Unfasten screws.

Installation:
Tightening torque, refer to Differential, Specifications.

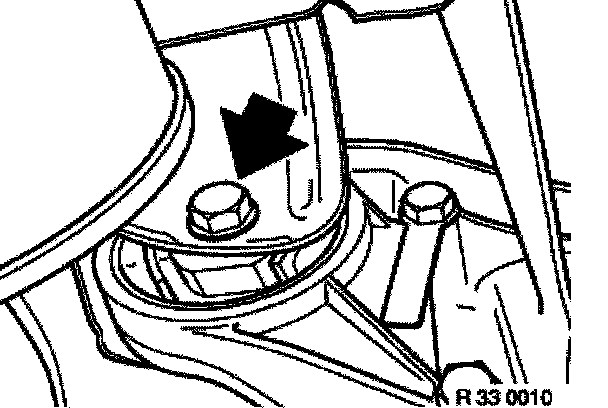

Unscrew screw.
Only lower final drive until special tool can be fitted otherwise the propeller shaft may be damaged.

Installation:
Replace self-locking nut.
Tightening torque, refer to Differential, Specifications.

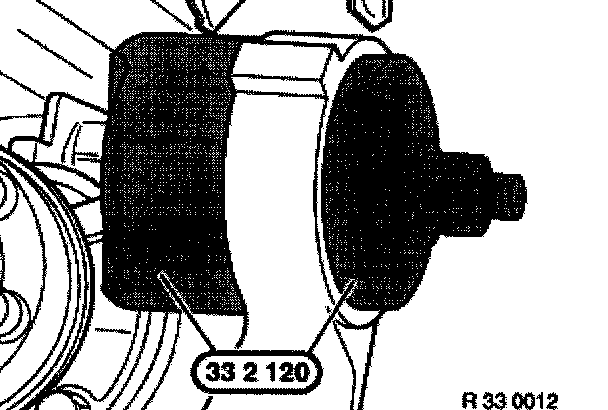

Pull out rubber mount using special tool 33 2 120.

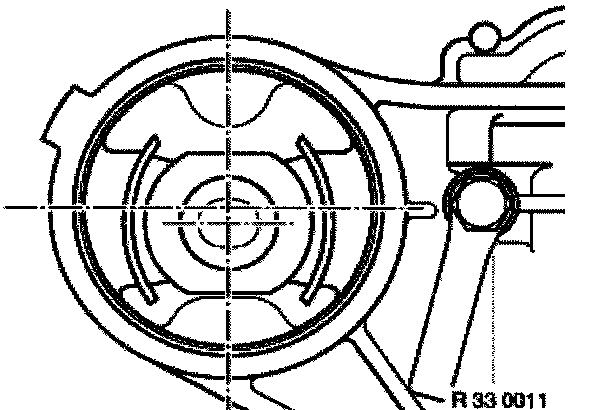

Note: Note installation position.

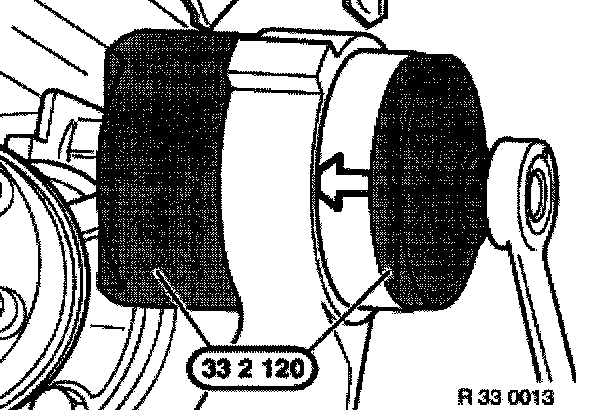

Pull in rubber mount using special tool 33 2 120.
