Ground X18170

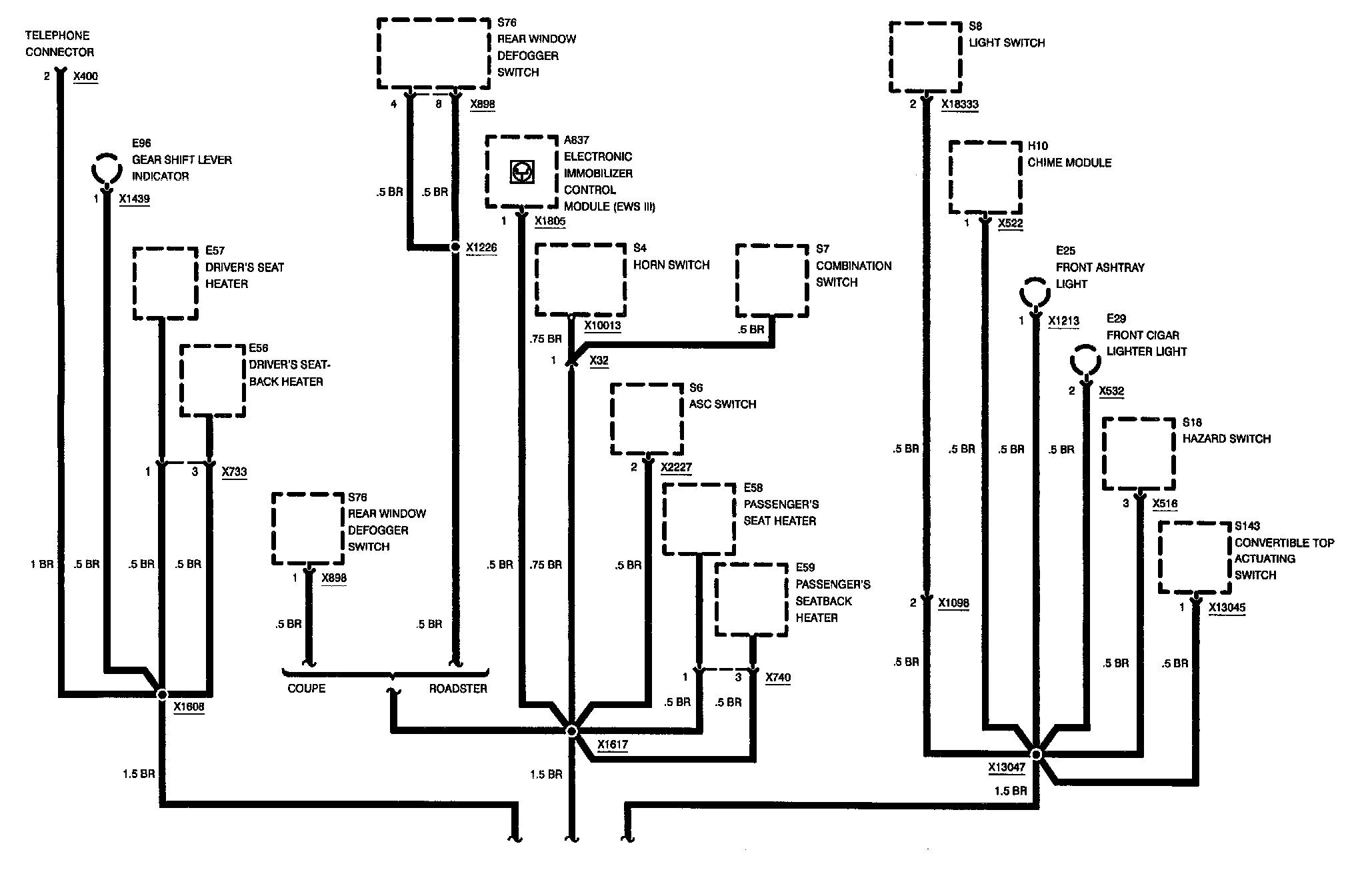

Ground Distribution: Grounds X18170 (Part 1 Of 2):

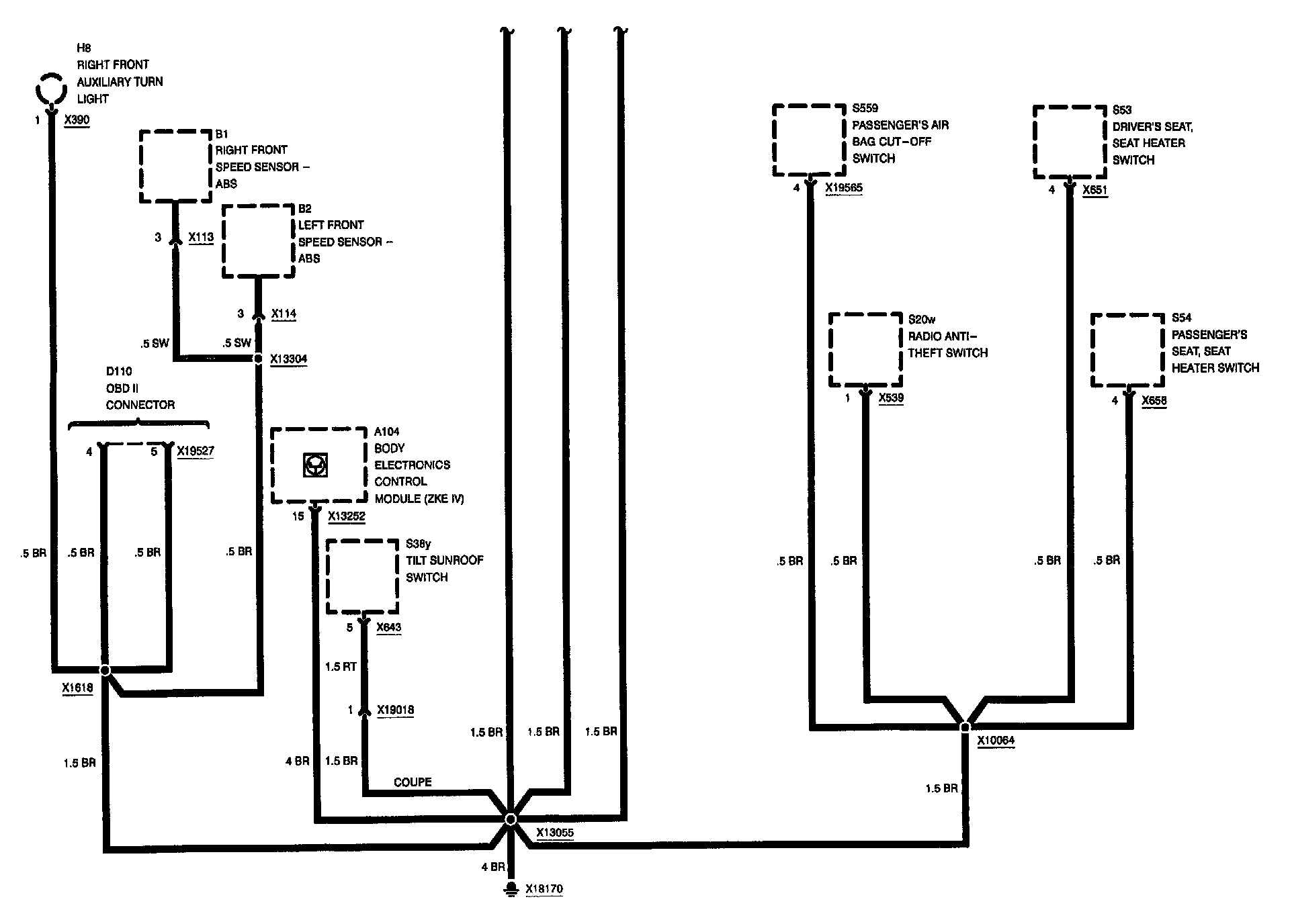

Ground Distribution: Grounds X18170 (Part 2 Of 2):
