Seat Belt: Service and Repair

CAUTION!
Note safety regulations for handling airbag modules and pyrotechnical seat belt tensioners.
Inexpert handling can trigger off the airbag or the belt tensioner and thus cause injuries. Remove and install rear left or right lower section of side trim.







Pyrotechnical belt tensioner:
Remove orange plug connection (1) for belt tensioner Open cable connector (2).
Installation:
Secure cable with cable connector (2) in such a way that orange plug connection (1) is not under tension.







Pyrotechnical belt tensioner:
Unscrew bolt (1).
Remove belt tensioner.
Tightening Torque =48 Nm
Note coding of belt tensioner at seat:
1 Bolt
2 Belt tensioner
3 Lock washer







If necessary, release screw (1) and remove seat belt.







Installation.

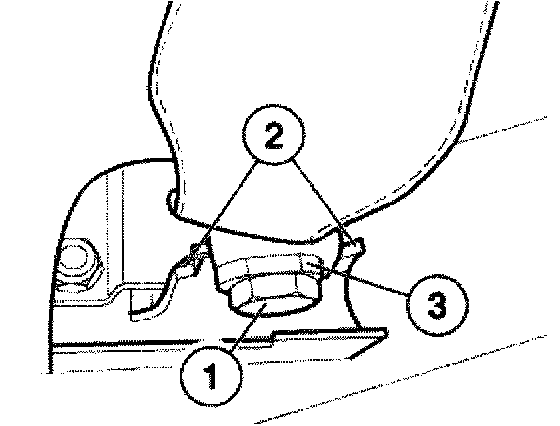

Note position of mount on seat frame:
1 = retaining screw
Tightening Torque = 48 Nm
2 = locating lugs must be between tabs on seatbelt (3)
3 = tab on seatbelt







Unscrew automatic reel.
Unscrew screw.

Installation:
Tightening Torque = 48 Nm
Remove automatic reels.







Installation:
Coding of automatic reel must be seated in body opening.







If necessary, remove seatbelt height adjustment.
Unfasten screws.

Installation:
Tightening Torque =24 Nm
Remove seatbelt height adjuster.
