Cyl. 1-6 Fuel Pump Relay
Cyl. 1-6 Fuel Pump Relay

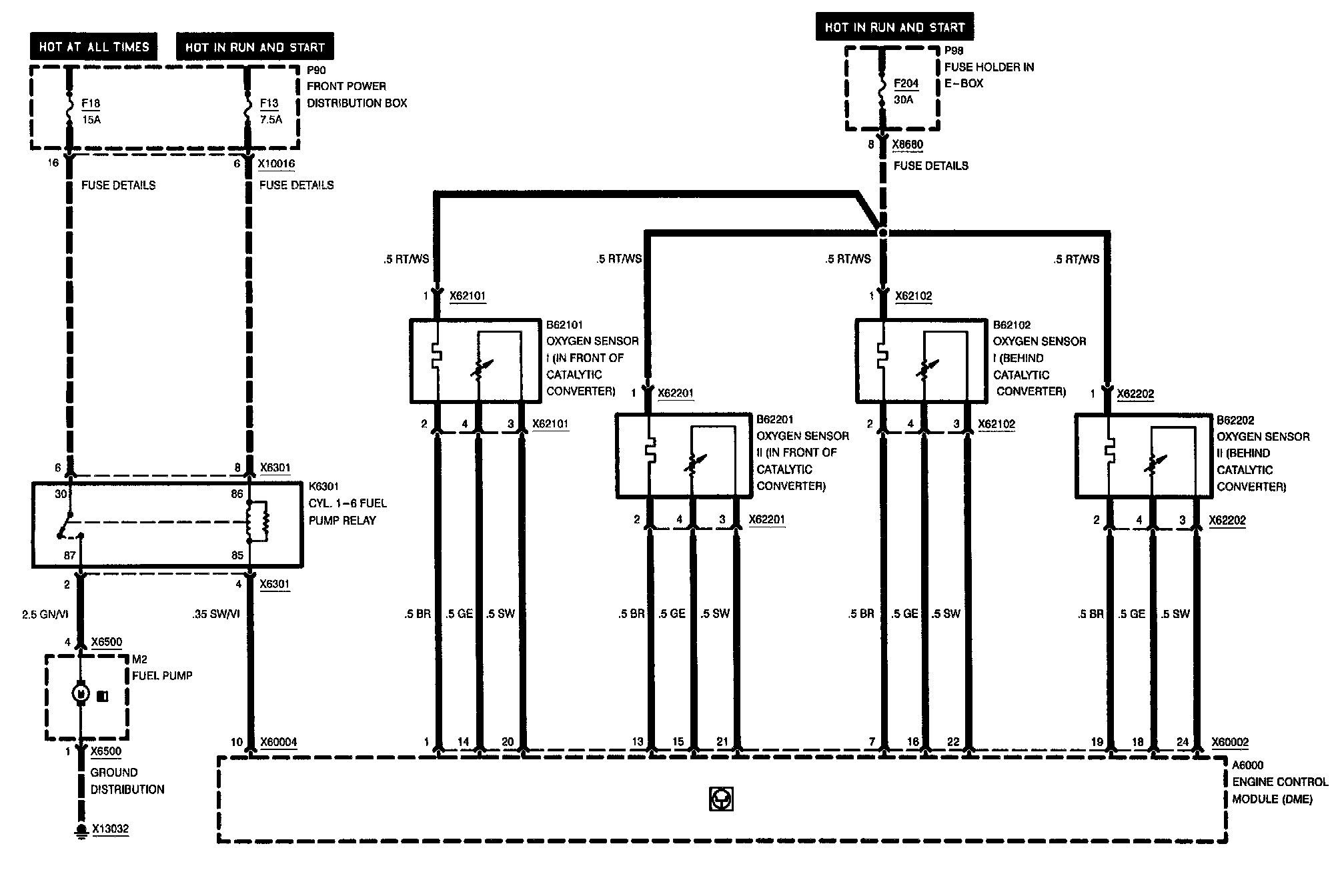

Engine Control System MS42.1: CYL. 1-6 Fuel Pump Relay:
