Home >> BMW >> 1999 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 19 - 22

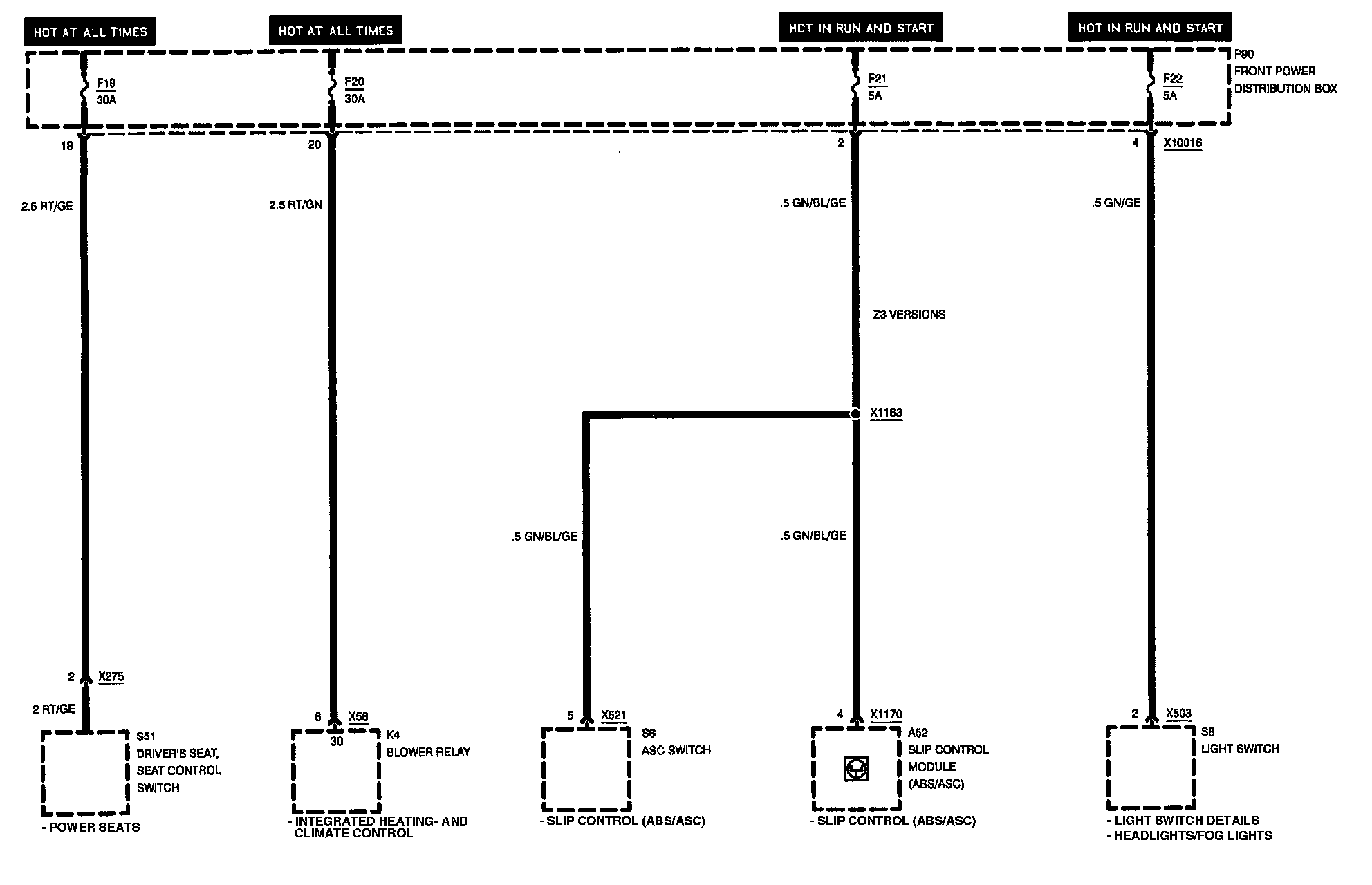

Fuses 19 - 22

Fuse Details: Fuses 19 - 22:
