Home >> BMW >> 1999 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 11 - 13

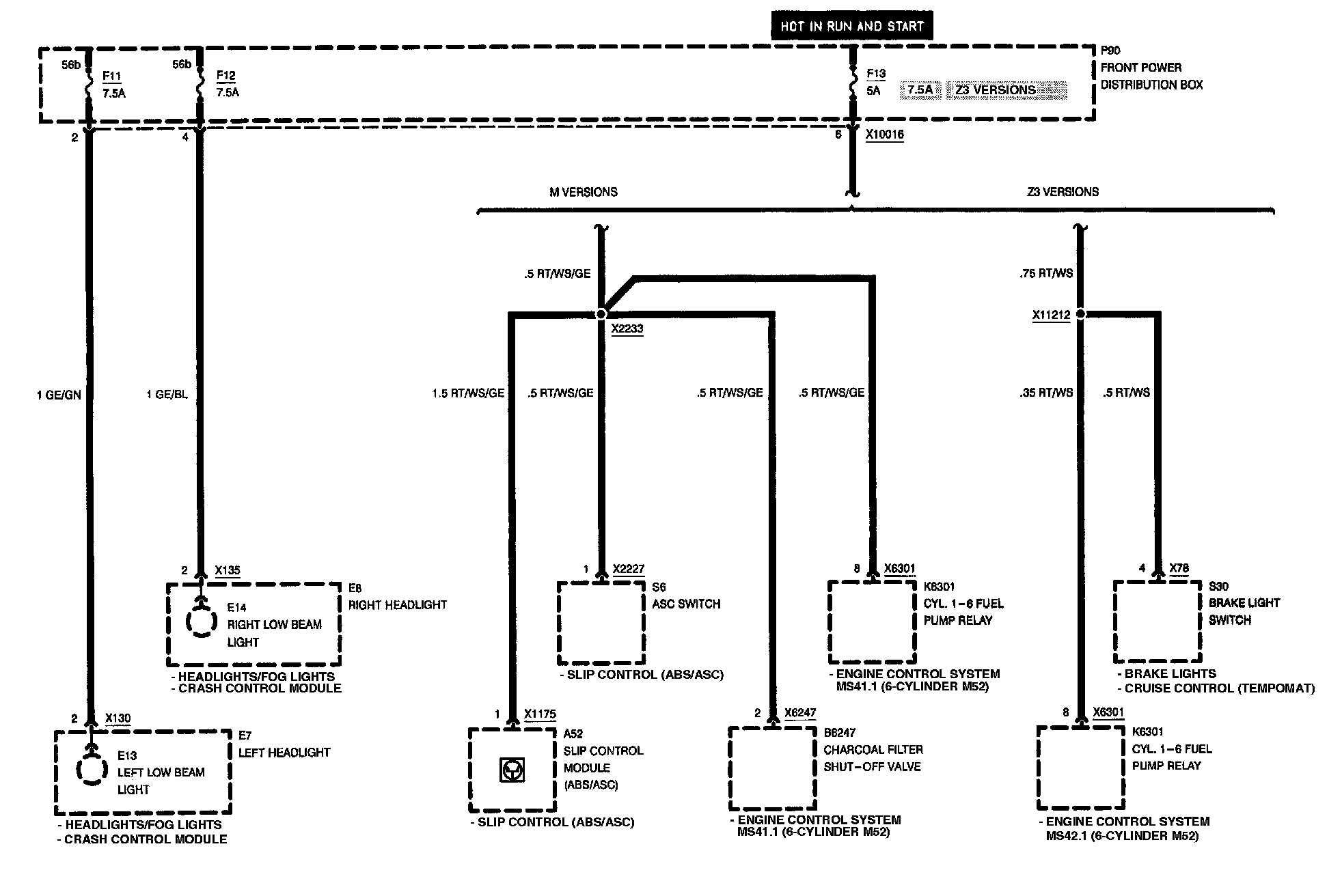

Fuses 11 - 13

Fuse Details: Fuses 11 - 13:
