Home
>>
BMW
>>
1999
>>
M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Passenger's Seat (Sports Seats)
Passenger's Seat (Sports Seats)

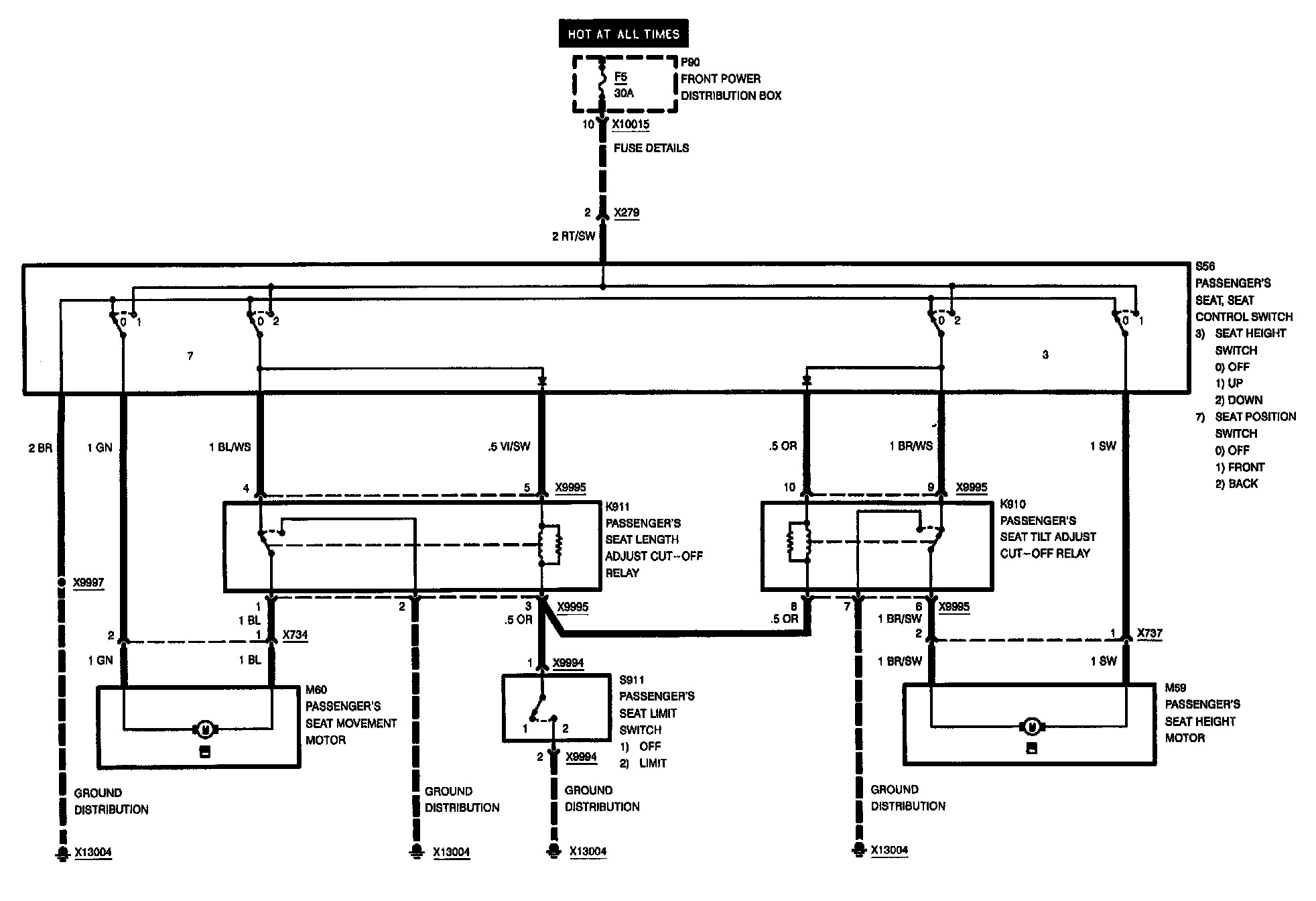

Power Seats: Passenger's Seat (Part 2 Of 2):
