Home >> BMW >> 1999 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> RXD and TXD

RXD and TXD

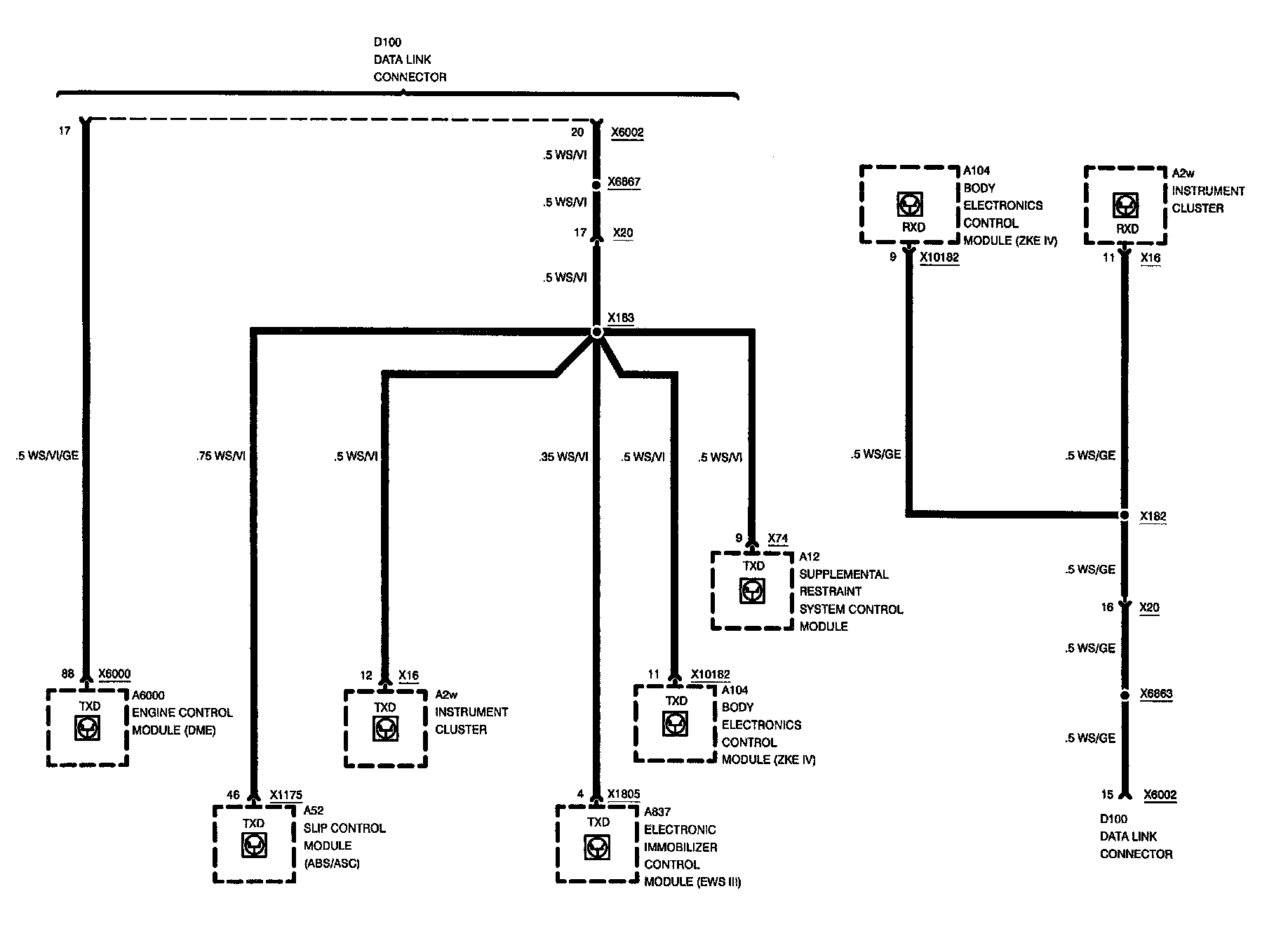

Data Link: TXD And RXD:
